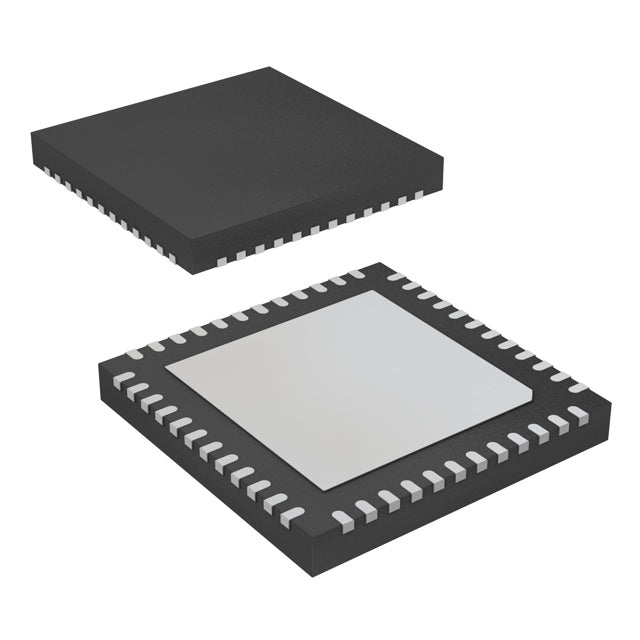

Texas Instruments ADS5517IRGZT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $61.59 | $61.59 |
| 15+ | $59.64 | $894.60 |
| 25+ | $58.35 | $1,458.75 |
| 50+ | $55.11 | $2,755.50 |
| 100+ | $48.62 | $4,862.00 |
| N+ | $9.72 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Number of Bits | 11 |
| Sampling Rate (Per Second) | 200M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel, Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) |
| ROHS |  |
The ADS5517IRGZT from Texas Instruments is an 11-bit high-speed analog-to-digital converter featuring a S/H-ADC architecture. It samples a single channel at up to 200 MSPS, making it suitable for wideband applications such as radar, software-defined radio, and medical imaging. The device offers both LVDS and parallel outputs, with support for external or internal references. Packaged in a 48-VFQFN with exposed pad, it operates from -40°C to 85°C, delivering reliable performance in demanding high-frequency environments.
- High Sampling Rate: 200 MSPS enables digitization of signals up to 100 MHz bandwidth, ideal for IF sampling.
- Dual Interface Options: LVDS and parallel outputs provide design flexibility for FPGA or ASIC integration.
- Flexible Reference: Internal or external reference selection allows trade-off between accuracy and component count.
- Thermal Efficiency: Exposed pad package improves heat dissipation, ensuring stable operation at high speeds.
- Wide Temperature Range: -40°C to 85°C rating supports outdoor and industrial deployment.
Software-Defined Radio
The 200 MSPS sampling rate and 11-bit resolution enable direct digitization of IF signals in SDR receivers, supporting wideband communication standards.
Radar Systems
In pulsed radar, the ADS5517IRGZT captures fast-return echoes with high dynamic range, improving target detection in military and weather radar.
Medical Ultrasound
High-speed sampling allows beamforming in ultrasound machines, where 11-bit resolution balances image quality with data throughput.
Wireless Base Stations
For 4G/5G infrastructure, this ADC digitizes multiple carriers simultaneously, with LVDS output reducing digital noise coupling.
High-Speed Data Acquisition
Test equipment like oscilloscopes and spectrum analyzers use the ADS5517IRGZT to capture transient signals with 200 MSPS bandwidth.
Optical Networking
In coherent optical receivers, the ADC converts high-speed analog signals from photodetectors, enabling advanced modulation formats.
