Texas Instruments ADS5522IPAPG4
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $109.08 | $109.08 |
| 15+ | $25.09 | $376.35 |
| 25+ | $24.54 | $613.50 |
| 50+ | $23.18 | $1,159.00 |
| 100+ | $20.45 | $2,045.00 |
| N+ | $4.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tray | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 80M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

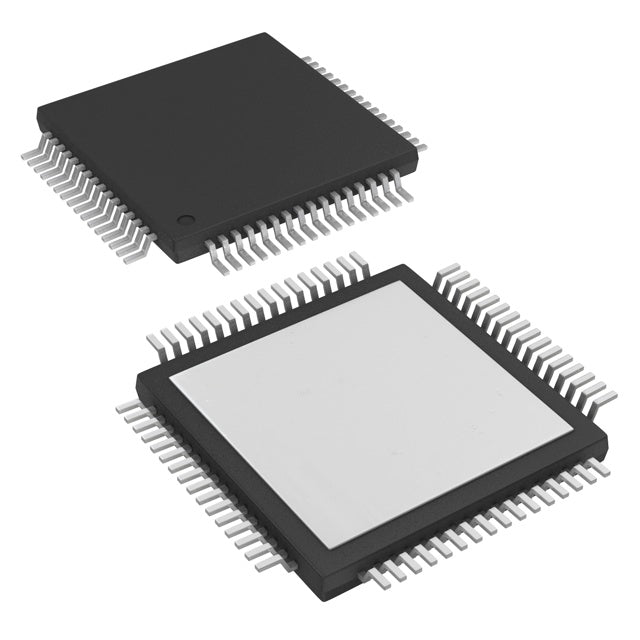

| Package / Case | 64-TQFP Exposed Pad |
| Supplier Device Package | 64-HTQFP (10x10) |
| ROHS |  |
The ADS5522IPAPG4 is a high-speed 12-bit ADC from Texas Instruments, engineered for demanding signal acquisition applications. It delivers a sampling rate of 80 MSPS, ensuring accurate capture of high-frequency signals. With a single input channel and a parallel interface, it provides a straightforward path for high-throughput data conversion. The device includes an internal reference, simplifying design. Housed in a 64-TQFP exposed pad package, it operates over the industrial temperature range, making it suitable for communications, test equipment, and medical imaging.
- High-Speed Performance: 80 MSPS sampling rate enables real-time digitization of fast signals.
- Integrated Reference: Internal reference reduces external component count and simplifies board design.
- Industrial Temperature Range: -40°C to +85°C ensures reliable operation in harsh environments.
- Parallel Output: High-speed parallel interface allows direct connection to high-bandwidth digital processors.
Wireless Base Stations
The ADS5522IPAPG4's 12-bit resolution and 80 MSPS sampling rate are ideal for digitizing IF signals in cellular base station receivers, supporting wideband communication standards.
Test and Measurement Equipment
High-speed digitization enables accurate capture of transient signals in oscilloscopes and spectrum analyzers, improving measurement fidelity.
Medical Imaging Systems
In ultrasound and MRI systems, the ADC's speed and resolution contribute to high-quality image reconstruction and diagnostic accuracy.
Radar Systems
The 80 MSPS sampling rate supports real-time processing of radar return signals for target detection and tracking in defense and automotive applications.
Communications Infrastructure
Its parallel interface simplifies connection to FPGAs and DSPs for high-throughput data processing in optical networking equipment.
Industrial Video Imaging
The ADC can digitize high-speed video signals for machine vision systems, enabling precise inspection and quality control in manufacturing.
- Q: What is the ADS5522IPAPG4?
- A: It is a 12-bit, single-channel, high-speed analog-to-digital converter (ADC) from Texas Instruments.
- Q: What is the resolution?
- A: The resolution is 12 bits, providing 4096 output codes.
- Q: What is the maximum sampling rate?
- A: It supports a maximum sampling rate of 80 MSPS (mega-samples per second).
- Q: How many channels does it have?
- A: It has 1 input channel.
- Q: What interface does it use?
- A: It uses a parallel digital output interface for high-speed data transfer.
- Q: What is the package type?
- A: It is available in a 64-TQFP exposed pad package.
