Burr Brown ADS574KP-2
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $69.32 | $69.32 |
| 15+ | $15.94 | $239.10 |
| 25+ | $15.60 | $390.00 |
| 50+ | $14.73 | $736.50 |
| 100+ | $13.00 | $1,300.00 |
| N+ | $2.60 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Burr Brown |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 40kHz |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.5V ~ 5.5V |
| Voltage - Supply, Digital | 4.5V ~ 5.5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-PDIP |

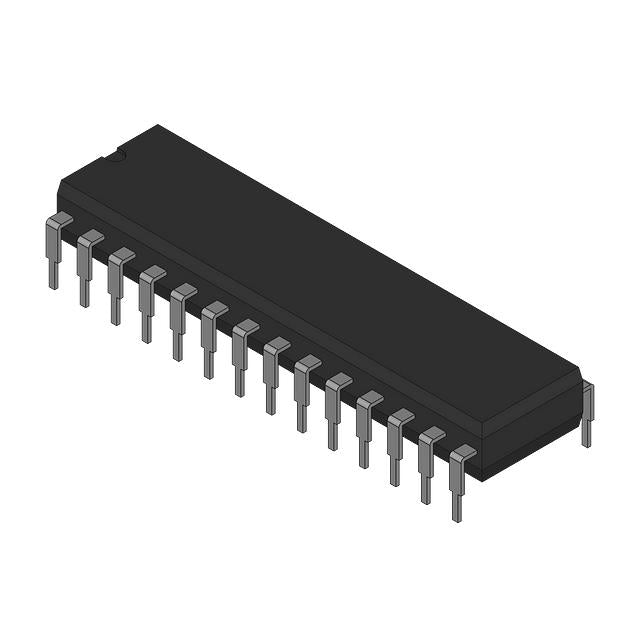

The ADS574KP-2 from Burr Brown is a 12-bit, single-channel analog-to-digital converter designed for precision industrial and instrumentation applications. It achieves a sampling rate of 40kHz and features a parallel interface for straightforward data transfer. The S/H-ADC architecture ensures accurate sampling, while the flexible reference options (external or internal) allow designers to optimize for accuracy or simplicity. Operating from 0°C to 70°C, it is housed in a 28-DIP package, making it easy to integrate into through-hole PCB designs. This ADC is well-suited for process control, medical devices, and high-precision data acquisition systems.
- High Precision: 12-bit resolution provides 4096 levels, ensuring accurate representation of analog signals for critical measurements.
- Flexible Reference: Supports both external and internal references, giving designers control over voltage range and accuracy.
- Reliable Performance: 40kHz sampling rate and 0°C to 70°C range ensure consistent operation in industrial environments.
- Easy Integration: Parallel interface and DIP package simplify prototyping and production assembly.
Industrial Process Control
The 12-bit resolution and 40kHz sampling rate provide accurate, real-time digitization of process variables like pressure and flow in PLCs.
Precision Data Logging
With internal or external reference options, this ADC is ideal for high-accuracy data loggers in environmental monitoring.
Audio Signal Processing
The 40kHz sampling rate exceeds audio bandwidth requirements, making it suitable for professional audio equipment.
Medical Instrumentation
12-bit precision enables reliable digitization of biomedical signals such as ECG and EEG for diagnostic devices.
Automotive Sensor Calibration
Its stable performance over 0°C to 70°C makes it suitable for test benches used in automotive sensor calibration.
Laboratory Measurement Systems
The parallel interface and high accuracy support benchtop multimeters and precision measurement instruments.
- Q: What is the ADS574KP-2?
- A: The ADS574KP-2 is a 12-bit, single-channel analog-to-digital converter with a parallel interface and S/H-ADC architecture.
- Q: What is the resolution?
- A: It provides 12-bit resolution, offering 4096 discrete levels for high-precision measurements.
- Q: What is the sampling rate?
- A: The maximum sampling rate is 40kHz, suitable for industrial and audio applications.
- Q: How many channels does it have?
- A: It has a single input channel (1 channel).
- Q: What reference options are available?
- A: It supports both external and internal reference voltages, providing flexibility in system design.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C and comes in a 28-DIP (0.600", 15.24mm) package.
