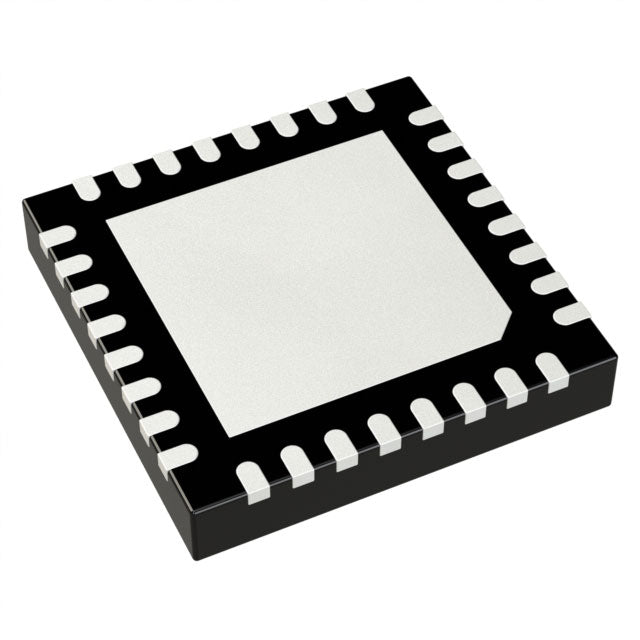

Texas Instruments ADS6125IRHBR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $135.63 | $135.63 |
| 15+ | $31.20 | $468.00 |
| 25+ | $30.52 | $763.00 |
| 50+ | $28.82 | $1,441.00 |
| 100+ | $25.43 | $2,543.00 |
| N+ | $5.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 125M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel, Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 1.65V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| ROHS |  |
The Texas Instruments ADS6125IRHBR is a high-speed, 12-bit analog-to-digital converter (ADC) optimized for single-channel, high-frequency signal digitization. It features a maximum sampling rate of 125 MSPS and utilizes a S/H-ADC architecture. The device offers both LVDS and parallel output interfaces, providing design flexibility. Housed in a 32-VFQFN package with an exposed pad for thermal management, it is suitable for applications such as wireless communications, test and measurement, and medical imaging.
- High-Speed Performance: The 125 MSPS sampling rate enables the capture of fast transient signals, making it ideal for high-frequency applications.
- Excellent Dynamic Performance: The 12-bit S/H-ADC architecture ensures high signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR) for accurate signal reproduction.
- Flexible Output Options: With both LVDS and parallel interfaces, it can easily connect to a variety of digital signal processors and FPGAs.
- Compact Thermal Package: The 32-VFQFN package with exposed pad helps dissipate heat efficiently, ensuring stable operation in demanding environments.
Wireless Communication Base Stations
The ADS6125IRHBR's 125 MSPS sampling rate and 12-bit resolution make it well-suited for digitizing IF signals in wireless base stations, enabling software-defined radio architectures for improved flexibility and performance.
Test and Measurement Equipment
In oscilloscopes and spectrum analyzers, this ADC provides the necessary speed and resolution to accurately capture and analyze high-frequency analog signals, ensuring reliable measurements.
Medical Ultrasound Systems
The high-speed conversion capability is critical in ultrasound imaging, where the ADC digitizes the returning analog echo signals to create high-resolution images for diagnostic purposes.
Radar Systems
For radar applications, the ADS6125's high sampling rate allows for precise time-of-flight measurements and target detection by digitizing the received RF signals with high fidelity.
High-Speed Data Acquisition Cards
This ADC is an excellent choice for PCIe or PXI data acquisition cards, providing the core digitization function for capturing high-bandwidth signals in various scientific and industrial applications.
- Q: What is the ADS6125IRHBR?
- A: It is a high-speed, 12-bit analog-to-digital converter (ADC) from Texas Instruments, designed for single-channel data conversion.
- Q: What is the resolution of this ADC?
- A: The ADS6125IRHBR offers 12-bit resolution, providing a good balance between precision and speed for many applications.
- Q: What is the maximum sampling rate?
- A: It supports a maximum sampling rate of 125 MSPS (125M SPS), suitable for digitizing high-frequency signals.
- Q: How many input channels does it have?
- A: This device features a single input channel (1 channel).
- Q: What digital interfaces are available?
- A: It provides both LVDS and parallel digital output interfaces for flexible connection to host processors.
- Q: What is the package type?
- A: It is available in a 32-VFQFN Exposed Pad package, which aids in thermal dissipation.
