Texas Instruments ADS6128IRGZT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $101.66 | $101.66 |
| 15+ | $98.45 | $1,476.75 |
| 25+ | $96.31 | $2,407.75 |
| 50+ | $90.96 | $4,548.00 |
| 100+ | $80.26 | $8,026.00 |
| N+ | $16.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 210M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel, Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

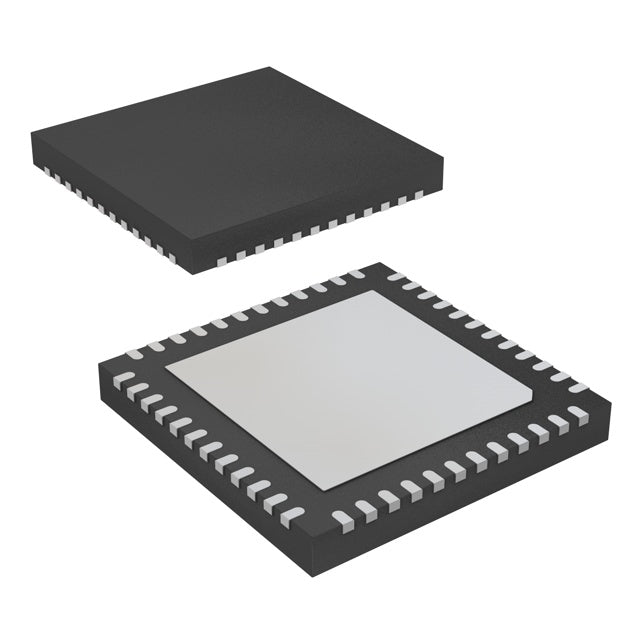

| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) |
| ROHS |  |
The ADS6128IRGZT from Texas Instruments is a high-speed 12-bit analog-to-digital converter with a sampling rate of 210 MSPS. It features a single channel and offers both LVDS and parallel output interfaces, providing flexibility for various digital signal processor and FPGA connections. The device supports external and internal references, allowing designers to optimize for accuracy or simplicity. Operating over -40°C to 85°C, it is housed in a 48-VFQFN exposed pad package, making it suitable for high-performance applications such as oscilloscopes, wireless base stations, and industrial imaging systems.
- Ultra-Fast 210 MSPS Sampling: Captures high-frequency signals with excellent time resolution for demanding applications.
- Dual Interface (LVDS/Parallel): Offers design flexibility and easy integration with various host processors.
- 12-Bit Resolution: Balances speed and accuracy, ideal for high-speed control and measurement.
- Flexible Reference Options: External or internal reference support enables optimization for specific system requirements.
- Compact 48-VFQFN Package: Saves board space while providing good thermal performance for continuous operation.
High-Speed Oscilloscopes
The 210 MSPS sampling rate and 12-bit resolution allow for accurate capture of fast transient signals in digital storage oscilloscopes.
Wireless Infrastructure
Ideal for IF sampling in base station receivers, the dual-interface option (LVDS/Parallel) provides design flexibility for different FPGA families.
Industrial X-Ray Inspection
High-speed digitization enables real-time imaging in non-destructive testing systems, improving throughput in manufacturing quality control.
Broadband Power Line Communication
The 210 MSPS rate supports wideband signal processing for high-speed data transmission over power lines in smart grid applications.
Laser Range Finding
Fast sampling captures narrow laser pulses with high timing accuracy, enhancing distance measurement precision in surveying equipment.
Defense Electronic Countermeasures
High instantaneous bandwidth and flexible output interfaces make it suitable for jamming and signal intelligence systems.
- Q: What is the resolution of the ADS6128IRGZT?
- A: It is a 12-bit analog-to-digital converter.
- Q: What is the maximum sampling rate?
- A: The ADS6128IRGZT samples at 210 MSPS (210M samples per second).
- Q: How many channels does it have?
- A: It has a single input channel.
- Q: What interfaces are supported?
- A: It supports both LVDS and parallel interfaces for flexible digital output.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
- Q: What package is it available in?
- A: It comes in a 48-VFQFN exposed pad package.
