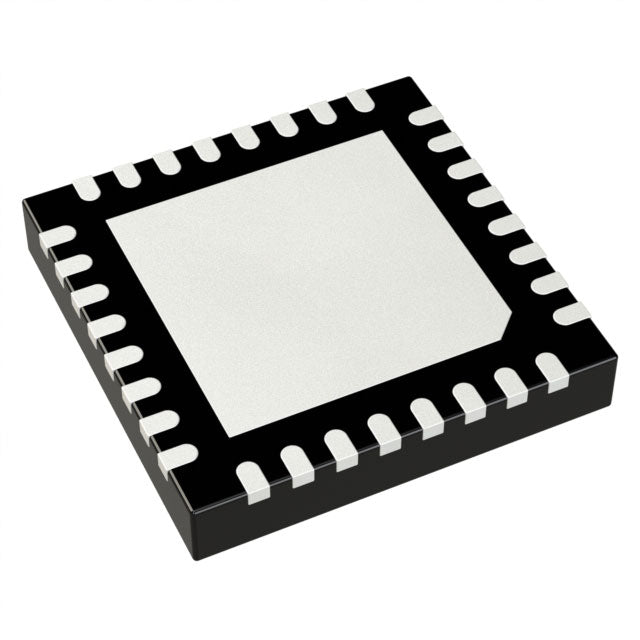

Texas Instruments ADS61B23IRHBR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $126.41 | $126.41 |
| 15+ | $29.07 | $436.05 |
| 25+ | $28.44 | $711.00 |
| 50+ | $26.86 | $1,343.00 |
| 100+ | $23.70 | $2,370.00 |
| N+ | $4.74 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 80M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel, Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 1.65V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| ROHS |  |
The ADS61B23IRHBR from Texas Instruments is a high-speed, 12-bit analog-to-digital converter (ADC) designed for demanding signal processing applications. With a sampling rate of 80 MSPS and a single input channel, it delivers excellent dynamic performance for capturing fast-changing signals. The device supports both LVDS and parallel output interfaces, offering flexibility in system design. Its S/H-ADC architecture ensures accurate sample acquisition. This ADC is well-suited for use in communications, test equipment, and medical imaging systems where high bandwidth and precision are essential.
- High-Speed Conversion: The 80 MSPS sampling rate enables the digitization of high-frequency signals, making it perfect for real-time processing applications.
- Flexible Output Interface: Supports both LVDS and parallel outputs, allowing easy integration with various digital signal processors and FPGAs.
- Precision Architecture: The S/H-ADC architecture ensures accurate sampling, reducing errors in high-speed data acquisition.
- Robust Operating Range: With a temperature range of -40°C to 85°C, it is reliable in both commercial and industrial environments.
High-Speed Data Acquisition
The 80 MSPS sampling rate and 12-bit resolution make it ideal for digitizing high-frequency signals in test and measurement equipment, ensuring accurate waveform capture.
Wireless Communications
Its LVDS interface supports high-speed data transfer, making it suitable for base stations and software-defined radios where fast, low-noise conversion is critical.
Medical Imaging Systems
The high dynamic range from the 12-bit resolution aids in ultrasound and MRI signal processing, where precise amplitude detection is required.
Radar and LIDAR Systems
The fast sampling rate enables the capture of narrow pulses, improving range and object detection accuracy in automotive and defense applications.
Industrial Automation
With an external/internal reference and wide temperature range, it can be used in motor control and vibration analysis, providing reliable performance in harsh environments.
Portable Instrumentation
The compact 32-VFQFN package allows for space-constrained designs, enabling high-performance signal analysis in handheld devices.
- Q: What is the resolution of the ADS61B23IRHBR?
- A: The ADS61B23IRHBR is a 12-bit analog-to-digital converter.
- Q: What is the maximum sampling rate?
- A: It supports a high-speed sampling rate of 80 MSPS (80M SPS).
- Q: How many input channels does it have?
- A: It features a single (1) input channel.
- Q: What digital interfaces are available?
- A: It offers both LVDS and Parallel digital output interfaces.
- Q: What is the ADC architecture?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type?
- A: It comes in a 32-VFQFN Exposed Pad package.
