Texas Instruments ADS61JB23IRHAT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $39.39 | $39.39 |
| 15+ | $38.14 | $572.10 |
| 25+ | $37.31 | $932.75 |
| 50+ | $35.24 | $1,762.00 |
| 100+ | $31.10 | $3,110.00 |
| N+ | $6.22 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 80M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | JESD204A |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V, 3V ~ 3.6V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-VQFN (6x6) |
| ROHS |  |

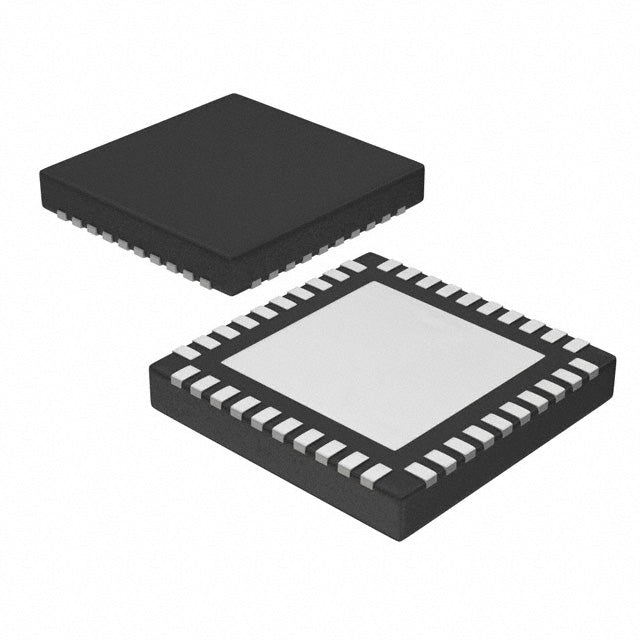

The ADS61JB23IRHAT from Texas Instruments is a 12-bit, 80 MSPS analog-to-digital converter featuring a modern JESD204A serial interface. This interface significantly reduces the number of digital I/O lines required, simplifying system design and reducing board space. The S/H-ADC architecture ensures reliable sampling of high-frequency signals. Housed in a 40-VFQFN package, it is designed for a broad range of applications, including wireless communications, radar, and medical imaging, where high-speed data conversion and efficient data transfer are essential.
- Compact Serial Interface: JESD204A reduces pin count and simplifies routing, saving valuable PCB space.
- High-Speed Performance: 80 MSPS sampling rate supports demanding applications like radar and SDR.
- Excellent Linearity: 12-bit resolution ensures accurate signal representation for reliable data analysis.
- Wide Temperature Range: Operates from -40°C to 85°C, suitable for industrial and outdoor equipment.
Software-Defined Radio (SDR)
The JESD204A interface simplifies connection to FPGAs, making this ADC perfect for SDR applications where high-speed data transfer and reduced pin count are critical.
Wireless Base Stations
With 12-bit resolution and 80 MSPS sampling, it effectively digitizes IF signals in cellular base stations, improving receiver sensitivity and flexibility.
Radar Systems
The high sampling rate and serial interface enable the capture of wideband radar returns, supporting advanced signal processing for target detection.
Medical Ultrasound
This ADC's speed and resolution are well-suited for ultrasound beamforming, providing high-quality images for diagnostic purposes.
Test and Measurement
In automated test equipment, the ADS61JB23IRHAT offers the speed and accuracy needed for characterizing a wide range of electronic components.
High-Speed Imaging
For line-scan cameras and other high-speed imaging systems, this ADC ensures rapid and precise digitization of sensor data.
- Q: What is the resolution of the ADS61JB23IRHAT?
- A: This ADC provides 12-bit resolution, balancing speed and precision for various signal processing tasks.
- Q: What is the sampling rate of this ADC?
- A: The ADS61JB23IRHAT operates at a maximum sampling rate of 80 MSPS (80M SPS).
- Q: How many channels does this ADC have?
- A: It features a single input channel (1 channel).
- Q: What interface does this ADC use?
- A: It uses the JESD204A serial interface, which reduces the number of data lines needed and simplifies PCB layout.
- Q: What is the architecture of this ADC?
- A: It uses a Sample-and-Hold (S/H-ADC) architecture for accurate signal conversion.
- Q: What is the package type?
- A: It is available in a 40-VFQFN Exposed Pad package, offering good thermal performance and a compact footprint.
