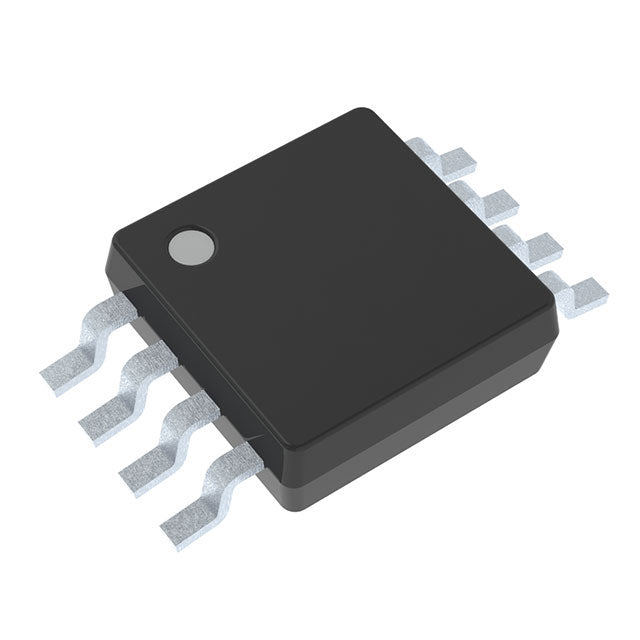

Texas Instruments ADS7043IDCUT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.06 | $3.06 |
| 15+ | $2.96 | $44.40 |
| 25+ | $2.90 | $72.50 |
| 50+ | $2.74 | $137.00 |
| 100+ | $2.42 | $242.00 |
| N+ | $0.48 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 1 |
| Input Type | Pseudo-Differential |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Supply |
| Voltage - Supply, Analog | 1.65V ~ 3.6V |
| Voltage - Supply, Digital | 1.65V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
| Supplier Device Package | 8-VSSOP |
| ROHS |  |
The Texas Instruments ADS7043IDCUT is a fast, 12-bit analog-to-digital converter with a sampling rate of 1M SPS. This single-channel device features a S/H-ADC architecture and uses the supply voltage as its reference, simplifying the design. Its SPI interface allows for easy connection to a wide range of microcontrollers. Housed in a compact 8-VFSOP package, it operates reliably from -40°C to 125°C. This ADC is well-suited for motor control, industrial automation, and automotive applications where speed and small size are critical.
- Fast 1M SPS Sampling: Enables real-time control loops in motor drives and power converters.
- Supply-Based Reference: Eliminates the need for a dedicated reference IC, reducing cost and board space.
- Wide Temperature Range: Operates from -40°C to 125°C, suitable for harsh automotive and industrial environments.
- Compact 8-VFSOP Package: Saves valuable PCB area in space-constrained designs.
Motor Control Systems
The 1M SPS sampling rate and SPI interface enable precise current and voltage sensing in field-oriented control (FOC) of BLDC motors.
Portable Battery Monitoring
Low power consumption and small 8-VFSOP package make it ideal for monitoring battery voltage and current in handheld devices.
Industrial Automation
In PLCs and industrial sensors, this ADC provides fast, accurate conversion for process control and monitoring.
Automotive Electronics
With a temperature range up to 125°C, it is suitable for automotive sensor interfaces, including pressure and position sensors.
Data Acquisition Systems
For high-speed, single-channel data logging, the ADS7043IDCUT offers a good balance of speed and resolution.
Power Inverters
In solar inverters and UPS systems, it can digitize voltage and current feedback signals for efficient power conversion control.
- Q: What type of ADC is the ADS7043IDCUT?
- A: It is a 12-bit, single-channel Analog-to-Digital Converter with a S/H-ADC architecture.
- Q: What is the resolution?
- A: The resolution is 12 bits.
- Q: What is the sampling rate?
- A: It supports a sampling rate of 1M SPS.
- Q: How many channels does it have?
- A: It has 1 input channel.
- Q: What interface does it use?
- A: It uses a standard SPI interface.
- Q: What is the operating temperature range?
- A: It operates over the extended industrial range of -40°C to 125°C.
