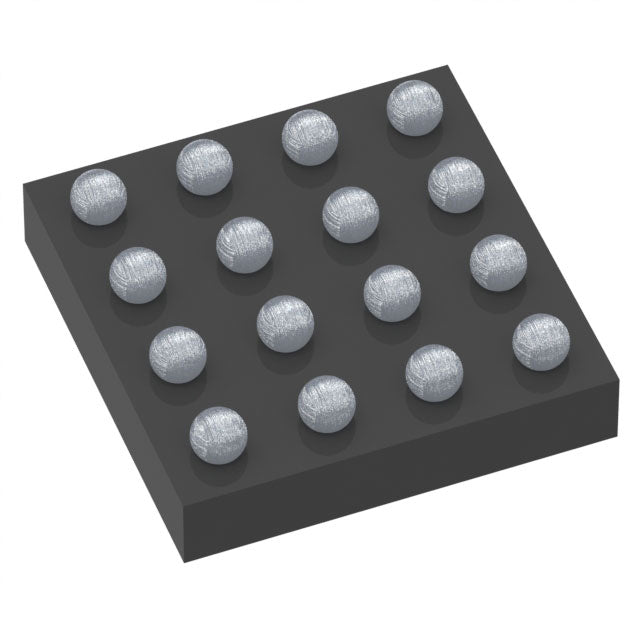

Texas Instruments ADS7066IYBHT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.19 | $16.19 |
| 15+ | $15.68 | $235.20 |
| 25+ | $15.34 | $383.50 |
| 50+ | $14.48 | $724.00 |
| 100+ | $12.78 | $1,278.00 |
| N+ | $2.56 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 5.5V |
| Voltage - Supply, Digital | 1.65V ~ 5.5V |
| Features | Internal Oscillator |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-XFBGA, DSBGA |
| Supplier Device Package | 16-DSBGA (1.62x1.62) |
The ADS7066IYBHT is a versatile 16-bit, 8-channel analog-to-digital converter from Texas Instruments. It integrates a multiplexer (MUX-ADC) to sample multiple analog inputs, achieving a sampling rate of 250k SPS. This device operates over an extended temperature range and supports both external and internal voltage references. Its compact DSBGA package and SPI interface make it an excellent choice for space-constrained, multi-channel sensing applications in automotive and industrial environments.
- Multi-Channel Integration: The integrated 8-channel MUX reduces board space and simplifies multi-signal acquisition.
- High Resolution: 16-bit resolution provides detailed and accurate digital representation of analog signals.
- Extended Temperature Range: Operates reliably from -40°C to 125°C, suitable for harsh automotive and industrial environments.
- Flexible Reference: Supports both external and internal voltage references for design flexibility.
Multi-Channel Data Acquisition
The 8-channel MUX-ADC architecture allows for sampling multiple analog signals with a single ADC, reducing component count and cost in data acquisition systems.
Automotive Sensor Monitoring
With a wide -40°C to 125°C temperature range, it is suitable for monitoring various automotive sensors like battery voltage, motor current, and fluid levels.
Industrial Automation & Control
The high 16-bit resolution and fast 250k SPS rate enable precise monitoring and control in industrial automation, such as PLC analog input modules.
Power System Monitoring
It can be used to digitize voltage and current signals from multiple phases in power monitoring equipment, ensuring accurate energy measurement.
Medical Instrumentation
The high resolution and multiple channels make it ideal for portable medical devices that monitor several physiological parameters simultaneously.
- Q: What is the resolution of the ADS7066IYBHT?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the maximum sampling rate?
- A: The sampling rate is 250k SPS.
- Q: How many input channels does it have?
- A: It has 8 multiplexed input channels.
- Q: What interface does it use?
- A: It communicates via the SPI interface.
- Q: What is the architecture of this ADC?
- A: It uses a MUX-ADC architecture with an integrated multiplexer.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C.
