Texas Instruments ADS7804U
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $157.19 | $157.19 |
| 15+ | $36.16 | $542.40 |
| 25+ | $35.37 | $884.25 |
| 50+ | $33.41 | $1,670.50 |
| 100+ | $29.48 | $2,948.00 |
| N+ | $5.90 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tube |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| ROHS |  |

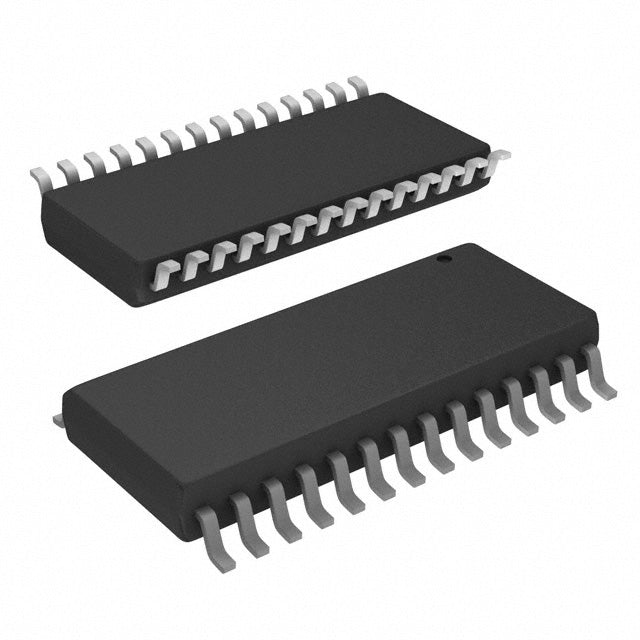

The ADS7804U from Texas Instruments is a 12-bit analog-to-digital converter with a 100k SPS sampling rate and a single input channel. Its successive-approximation architecture ensures reliable and accurate conversions, while the parallel interface provides fast data transfer to host processors. Operating from -40°C to 85°C and available in a 28-SOIC package, this ADC is ideal for industrial automation, automotive diagnostics, and embedded control systems.
- Proven Reliability: 12-bit SAR architecture delivers consistent performance in industrial environments.
- Parallel Interface: Enables high-speed data transfer without serial protocol overhead.
- Flexible Reference: Supports both external and internal references for design flexibility.
- Wide Temperature Range: -40°C to 85°C ensures operation in demanding applications.
- Standard Package: 28-SOIC footprint is widely available and easy to solder.
Industrial Data Acquisition
The 12-bit resolution and 100k SPS sampling rate are well-suited for industrial data acquisition systems monitoring temperature, pressure, and flow.
Embedded Control Systems
The parallel interface allows direct connection to microcontrollers and DSPs for real-time control in robotics and CNC machinery.
Automotive Diagnostics
With -40°C to 85°C operation, it can be used in automotive diagnostic tools for battery voltage and sensor signal monitoring.
Test and Measurement
Its parallel output and reliable performance make it ideal for benchtop multimeters and oscilloscope front-ends.
Energy Management
The internal/external reference options support accurate power monitoring in smart grid and renewable energy systems.
- Q: What is the ADS7804U?
- A: It is a 12-bit successive-approximation (S/H-ADC) analog-to-digital converter from Texas Instruments.
- Q: What is its sampling rate?
- A: It has a maximum sampling rate of 100k SPS.
- Q: How many channels does it have?
- A: It features a single input channel.
- Q: What interface does it use?
- A: It uses a parallel digital interface.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
- Q: What package is available?
- A: It comes in a 28-SOIC (0.295", 7.50mm Width) package.
