Texas Instruments ADS7869IPZT - Precision 12-Bit 12-Channel ADC for Motor Control Applications

The ADS7869IPZT from Texas Instruments is a high-performance 12-bit analog-to-digital converter engineered for demanding motor control applications. Featuring 12 simultaneous sampling channels and a 1MSPS sampling rate, this precision ADC delivers the speed, accuracy, and multi-channel capability required for advanced three-phase motor control, servo drives, and industrial automation systems.

Key Features & Technical Advantages

• 12-bit resolution - Ensures precise signal conversion with excellent linearity for accurate motor control feedback and position sensing
• 1 million samples per second (1MSPS) - High-speed sampling captures fast-changing motor dynamics and transient events in real-time
• 12 independent simultaneous sampling channels - Enables comprehensive multi-phase motor monitoring with synchronized data acquisition across all inputs
• Dual interface support (Serial & Parallel) - Flexible connectivity options for seamless integration with microcontrollers, DSPs, and FPGAs
• Extended industrial temperature range (-40°C to 85°C) - Reliable operation in harsh automotive, industrial, and outdoor environments
• Flexible dual power supply options (2.7V-3.6V or 4.5V-5.5V) - Simplifies power architecture and enables compatibility with 3.3V and 5V systems

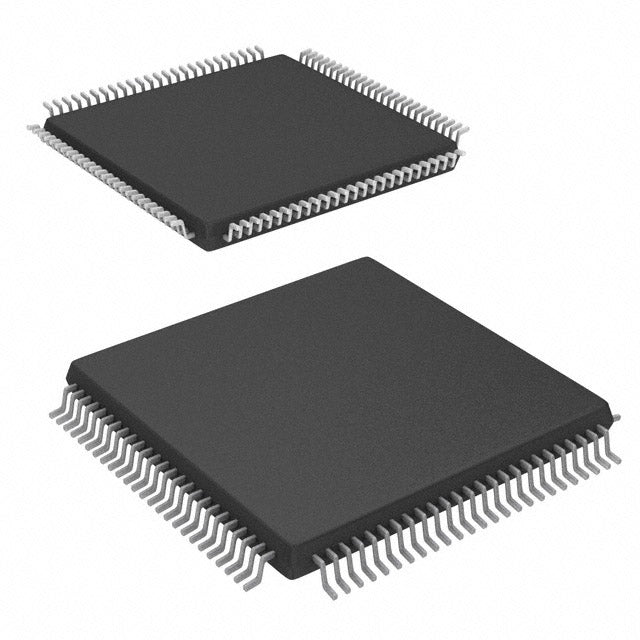

• 100-TQFP surface mount package (14x14mm) - Space-efficient footprint optimized for automated PCB assembly and high-density designs
• RoHS compliant - Meets global environmental regulations for lead-free manufacturing and export compliance
• Long product lifecycle commitment - Texas Instruments authorized distribution with full traceability and extended availability

Target Applications & Use Cases

• Three-phase brushless DC (BLDC) motor control - Field-oriented control (FOC) and sensorless control algorithms
• Industrial servo drives and motion control - High-precision positioning systems and multi-axis coordination
• Automotive electric power steering (EPS) - Safety-critical motor control with redundant sensing
• HVAC and appliance motor control - Variable-speed compressors, fans, and pump control
• Robotics and precision positioning - Collaborative robots, pick-and-place systems, and automated guided vehicles (AGVs)
• Multi-axis CNC machine tools - Synchronized spindle and axis control for precision machining
• Solar tracking and renewable energy systems - Dual-axis tracker control and MPPT optimization

Why Choose the ADS7869IPZT for Your Design?

The Texas Instruments ADS7869 family represents the industry standard for simultaneous multi-channel ADCs in motor control applications. The device's 12-bit resolution and 1MSPS sampling rate provide the precision and speed essential for implementing advanced field-oriented control (FOC) algorithms, while the 12 independent channels enable comprehensive monitoring of phase currents, voltages, and position feedback signals without multiplexing delays.

The dual interface architecture (serial and parallel) ensures compatibility with a wide range of host processors, from cost-optimized microcontrollers to high-performance DSPs and FPGAs. This flexibility accelerates development and enables platform reuse across product families.

As an authorized distributor, we provide genuine Texas Instruments components with complete supply chain traceability, manufacturer documentation, and long-term availability commitments essential for aerospace, automotive, industrial, medical, and telecommunications applications requiring extended product lifecycles.

All specifications are subject to change. Please refer to the manufacturer's datasheet for the most current information. We provide authorized distribution with full traceability and RoHS/REACH compliance documentation.

No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
