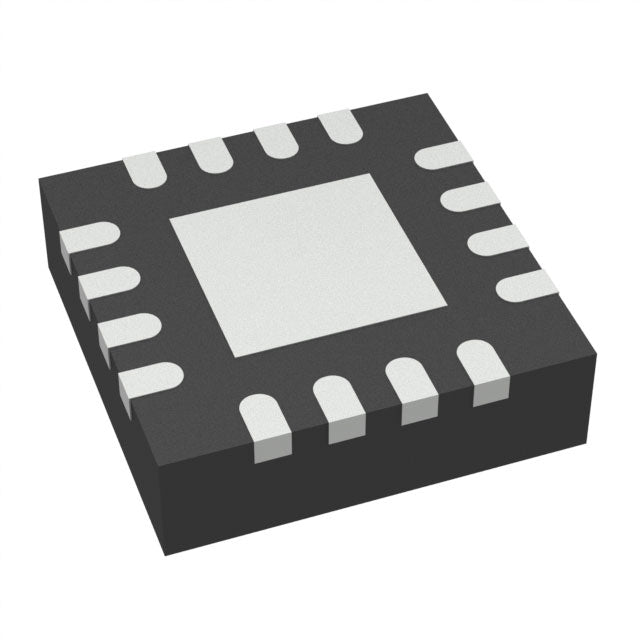

Texas Instruments ADS7949SRTER
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.73 | $2.73 |
| 15+ | $2.64 | $39.60 |
| 25+ | $2.58 | $64.50 |
| 50+ | $2.44 | $122.00 |
| 100+ | $2.15 | $215.00 |
| N+ | $0.43 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 2M |
| Number of Inputs | 2 |
| Input Type | Pseudo-Differential |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 1.65V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (3x3) |
| ROHS |  |
The ADS7949SRTER is an 8-bit, 2 MSPS analog-to-digital converter from Texas Instruments, featuring 2 multiplexed input channels. Its SAR-based MUX-S/H-ADC architecture delivers fast and accurate conversions with minimal delay. The device interfaces via SPI and requires an external reference for flexible voltage scaling. Packaged in a compact 16-WFQFN with exposed pad, it operates reliably from -40°C to 125°C. This ADC is well-suited for high-speed data acquisition, industrial automation, and portable instrumentation where speed and small size are paramount.
- Fast Conversion Rate: 2 MSPS enables capture of high-frequency signals without aliasing.
- Dual-Channel Flexibility: 2:1 MUX allows for interleaved sampling of two signals.
- Low Latency SAR Architecture: Provides immediate conversion results, ideal for real-time control.
- Robust Temperature Range: -40°C to 125°C suits demanding industrial environments.
- Space-Saving Package: 16-WFQFN reduces PCB footprint for dense designs.
High-Speed Data Acquisition
The 2 MSPS sampling rate makes the ADS7949SRTER ideal for high-speed data acquisition systems where fast signal capture is critical, such as vibration analysis.
Digital Oscilloscopes
With its fast sampling and 8-bit resolution, this ADC can be used in low-cost digital oscilloscope front-ends for capturing transient signals.
Optical Sensor Interfaces
The 2-channel input allows simultaneous sampling of reference and signal photodiodes, improving accuracy in optical measurement systems.
Industrial Automation
SPI interface and wide temperature range make it suitable for industrial sensors and PLC analog input modules.
Medical Monitoring Devices
Compact 16-WFQFN package and low power consumption enable use in portable medical devices like pulse oximeters.
Test and Measurement Equipment
The high sampling rate and external reference support precise measurements in benchtop multimeters and data loggers.
- Q: What is the resolution of the ADS7949SRTER?
- A: It is an 8-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The ADS7949SRTER supports a maximum sampling rate of 2 MSPS.
- Q: How many channels does it have?
- A: It has 2 multiplexed input channels.
- Q: What interface does it use?
- A: It uses a standard SPI serial interface.
- Q: What is the architecture?
- A: It uses a MUX-S/H-ADC architecture based on SAR conversion.
- Q: What is the package and temperature range?
- A: It comes in a 16-WFQFN exposed pad package and operates from -40°C to 125°C.
