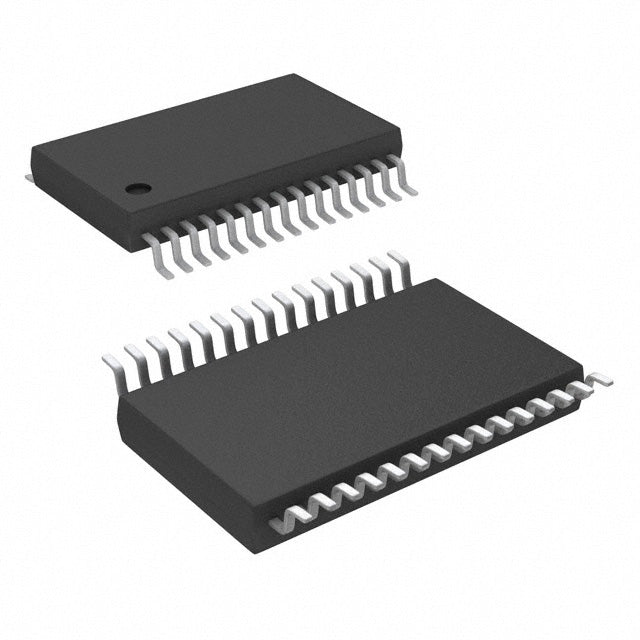

Texas Instruments ADS7950SBDBTR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.16 | $13.16 |
| 15+ | $3.03 | $45.45 |
| 25+ | $2.96 | $74.00 |
| 50+ | $2.80 | $140.00 |
| 100+ | $2.47 | $247.00 |
| N+ | $0.49 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | microPOWER™ |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 4 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 1.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 30-TFSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 30-TSSOP |
| ROHS |  |
The ADS7950SBDBTR from Texas Instruments is a 12-bit, 4-channel analog-to-digital converter with a fast 1M SPS sampling rate. It features a MUX-S/H-ADC architecture and a SPI interface, making it easy to connect to microcontrollers and DSPs. Housed in a 30-TFSOP package, it operates over a wide temperature range of -40°C to +125°C, suitable for demanding industrial and automotive applications.
- High-Speed Performance: 1M SPS sampling rate captures fast transient signals.
- Multi-Channel Input: 4 channels allow for monitoring multiple signals with one device.
- Wide Temperature Range: -40°C to +125°C ensures operation in extreme environments.
- Reliable Interface: SPI interface provides robust communication with host processors.
High-Speed Data Acquisition
The 1M SPS sampling rate of the ADS7950SBDBTR allows for digitization of fast-changing signals in applications like vibration analysis and power quality monitoring.
Motor Control
With 4 channels and high speed, this ADC can simultaneously sample phase currents and voltages in three-phase motor drives, enabling advanced FOC algorithms.
Industrial Automation
In factory automation, the ADS7950 provides fast, accurate conversion for PLC analog input modules, ensuring responsive control of machinery.
Medical Ultrasound
The high sampling rate supports digitization of ultrasound echo signals, contributing to high-resolution imaging in medical diagnostic equipment.
Power Inverters
For solar and UPS inverters, this ADC monitors multiple voltage and current points at high speed, improving efficiency and protection.
- Q: What is the resolution of the ADS7950SBDBTR?
- A: It is a 12-bit ADC.
- Q: What is the sampling rate?
- A: It has a sampling rate of 1M SPS.
- Q: How many channels does it have?
- A: It has 4 input channels.
- Q: What interface does it use?
- A: It uses a SPI interface.
- Q: What is the architecture?
- A: It uses a MUX-S/H-ADC architecture.
- Q: What is the package type?
- A: It comes in a 30-TFSOP package.
