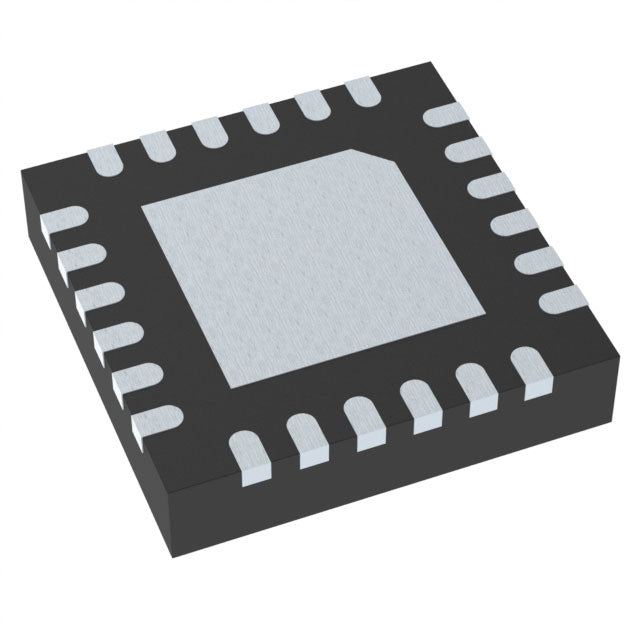

Texas Instruments ADS7951SBRGER
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.28 | $13.28 |
| 15+ | $3.05 | $45.75 |
| 25+ | $2.99 | $74.75 |
| 50+ | $2.82 | $141.00 |
| 100+ | $2.49 | $249.00 |
| N+ | $0.50 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | microPOWER™ |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 1.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-VQFN (4x4) |
| ROHS |  |
The ADS7951SBRGER is a 12-bit, 8-channel analog-to-digital converter from Texas Instruments, designed for high-density data acquisition applications. It features a maximum sampling rate of 1 MSPS and a multiplexed input structure, enabling it to digitize up to eight analog signals. The device uses a standard SPI interface for communication and a MUX-S/H-ADC architecture for accurate conversion. Housed in a compact 24-VQFN package with an exposed pad, it offers excellent thermal performance. It operates over a wide temperature range of -40°C to +125°C, making it ideal for demanding industrial and automotive environments.
- High Channel Density: 8 multiplexed inputs allow for monitoring multiple signals with a single device, reducing system complexity.
- Extended Temperature Range: Rated for -40°C to +125°C, it is built for harsh automotive and industrial environments.
- Fast Sampling: The 1 MSPS sampling rate ensures timely and accurate data capture for real-time control.
- Excellent Thermal Performance: The exposed pad in the 24-VQFN package aids in heat dissipation, ensuring reliable operation.
High-Channel-Count Data Acquisition
With 8 multiplexed input channels, this ADC is perfect for systems that need to monitor many analog signals, such as industrial control and monitoring systems.
Automotive Battery Management
The wide temperature range of -40°C to +125°C makes it suitable for automotive battery management systems, where it can monitor cell voltages and temperatures.
Medical Instrumentation
Its high channel count and 12-bit resolution are well-suited for medical devices like patient monitoring systems that require multiple vital sign inputs.
Industrial Process Control
The 1 MSPS sampling rate and SPI interface enable fast and reliable data acquisition in industrial process control loops, ensuring precise regulation.
Power System Monitoring
It can be used to monitor multiple voltage and current points in power distribution systems, providing critical data for protection and control.
- Q: What is the resolution of the ADS7951SBRGER?
- A: It is a 12-bit analog-to-digital converter.
- Q: What is the maximum sampling rate?
- A: The ADS7951SBRGER supports a sampling rate of 1 MSPS.
- Q: How many input channels does it have?
- A: It features 8 multiplexed input channels.
- Q: What interface does it use?
- A: It communicates via a standard SPI (Serial Peripheral Interface).
- Q: What is the architecture of this ADC?
- A: It uses a MUX-S/H-ADC architecture with a successive approximation register (SAR) converter.
- Q: What is the operating temperature range?
- A: It is rated for operation from -40°C to +125°C.
