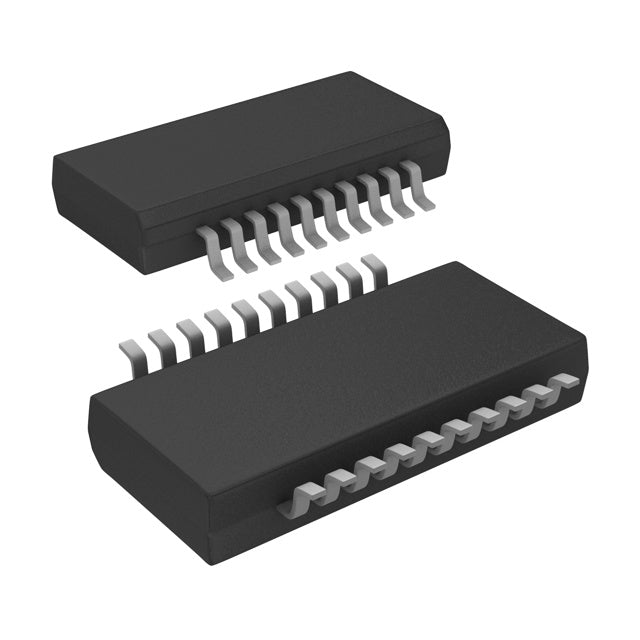

Texas Instruments ADS831E
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $15.32 | $15.32 |
| 15+ | $14.84 | $222.60 |
| 25+ | $14.52 | $363.00 |
| 50+ | $13.71 | $685.50 |
| 100+ | $12.10 | $1,210.00 |
| N+ | $2.42 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 80M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-SSOP |
| ROHS |  |
The ADS831E from Texas Instruments is a high-speed 8-bit analog-to-digital converter with a maximum sampling rate of 80 MSPS. It features a single input channel and a sample-and-hold architecture, ensuring accurate capture of high-frequency signals. The parallel interface enables fast data transfer to DSPs and FPGAs. Operating over the industrial temperature range and housed in a 20-SSOP package, it is designed for demanding applications such as video processing, medical imaging, and high-speed data acquisition.
- Ultra-Fast Sampling: 80 MSPS enables digitization of high-frequency signals for video and IF applications.
- Parallel Output: High-speed parallel interface simplifies connection to high-bandwidth digital systems.
- Wide Temperature Range: -40°C to +85°C operation ensures suitability for industrial environments.
- Proven Architecture: S/H-ADC architecture provides reliable performance in dynamic signal applications.
High-Speed Video Digitization
The 80 MSPS sampling rate of the ADS831E makes it suitable for digitizing analog video signals in applications like CCTV systems and video capture cards.
Ultrasound Imaging
In medical ultrasound, the high-speed parallel interface and 8-bit resolution allow for the digitization of RF signals from transducer arrays, enabling real-time image processing.
Digital Oscilloscopes
The ADS831E can be used in low-cost digital oscilloscopes to sample analog waveforms at high speed, providing adequate resolution for general-purpose measurements.
IF Sampling in Communications
In communication receivers, this ADC can digitize intermediate frequency (IF) signals, simplifying the receiver architecture by enabling digital down-conversion.
High-Speed Data Acquisition
For test and measurement equipment, the parallel output and high sample rate allow for fast data capture in transient recording and analysis systems.
- Q: What is the ADS831E?
- A: The ADS831E is an 8-bit, high-speed analog-to-digital converter (ADC) from Texas Instruments.
- Q: What is the resolution of the ADS831E?
- A: It provides 8-bit resolution, offering 256 discrete levels.
- Q: What is the maximum sampling rate?
- A: The ADS831E can sample at up to 80 MSPS (mega samples per second).
- Q: How many channels does it have?
- A: It has a single (1) analog input channel.
- Q: What interface does it use?
- A: It uses a parallel digital output interface for high-speed data transfer.
- Q: What is the package type?
- A: It is available in a 20-pin SSOP package.
