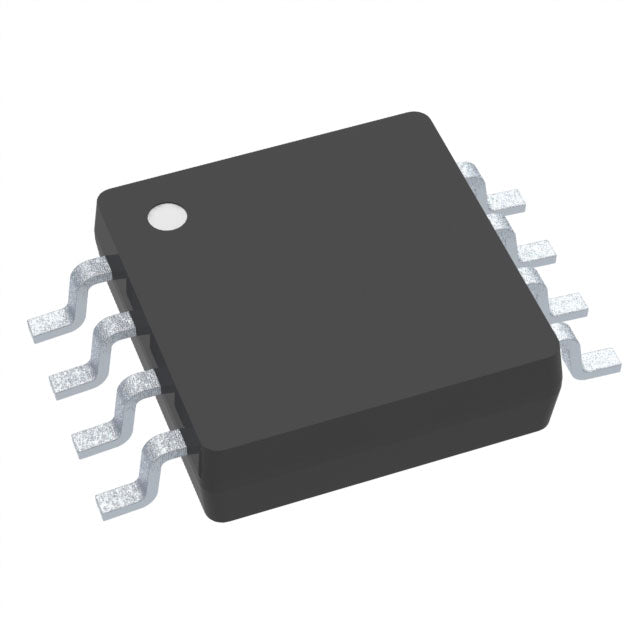

Texas Instruments ADS8320EB/2K5
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.06 | $12.06 |
| 15+ | $11.67 | $175.05 |
| 25+ | $11.42 | $285.50 |
| 50+ | $10.79 | $539.50 |
| 100+ | $9.52 | $952.00 |
| N+ | $1.90 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | microPOWER™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 1 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 3.3V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.3V, 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| ROHS |  |
The Texas Instruments ADS8320 is a high-performance, 16-bit Analog-to-Digital Converter (ADC) featuring a single input channel and a maximum sampling rate of 100k SPS. Its SAR architecture with an integrated sample-and-hold circuit ensures accurate and fast conversions. The device communicates via a standard SPI interface, making it easy to connect to a wide range of microcontrollers and digital systems. Housed in a compact 8-pin TSSOP or MSOP package, it is well-suited for space-constrained applications requiring high precision, such as portable instrumentation, industrial control, and medical devices.
- High Precision: 16-bit resolution provides fine granularity for accurate measurement of analog signals.
- Fast Sampling Rate: 100k SPS enables capture of dynamic signals for real-time monitoring and control.
- Easy Integration: Standard SPI interface simplifies connection to digital systems, reducing design complexity.
- Compact Size: Small 8-pin package is ideal for space-limited portable and embedded applications.
High-Precision Sensor Digitization
The 16-bit resolution and 100k SPS sampling rate make it ideal for digitizing outputs from precision sensors like strain gauges and thermocouples, ensuring accurate measurement in industrial settings.
Portable Instrumentation
Its low power consumption and small 8-pin package are perfect for battery-powered devices such as handheld multimeters and portable data loggers, where space and power are critical.
Data Acquisition Systems
The SPI interface simplifies integration with microcontrollers in multi-channel data acquisition systems, allowing for high-speed, accurate sampling of analog signals.
Medical Monitoring Devices
In medical instrumentation like patient monitors, the ADC's precision ensures reliable conversion of vital sign signals, contributing to accurate diagnostics.
Industrial Process Control
The device's wide operating temperature range (-40°C to 85°C) and stable performance make it suitable for industrial automation and process control loops.
Test and Measurement Equipment
With its high accuracy and fast sampling, it can be used in benchtop equipment for characterizing electronic circuits and signals.
- Q: What is the ADS8320EB/2K5?
- A: It is a 16-bit, single-channel, SAR-based Analog-to-Digital Converter (ADC) from Texas Instruments.
- Q: What is the resolution and sampling rate?
- A: It offers 16-bit resolution with a maximum sampling rate of 100k SPS.
- Q: How many input channels does it have?
- A: It has 1 input channel.
- Q: What digital interface does it use?
- A: It uses a Serial Peripheral Interface (SPI) for communication.
- Q: What is the architecture of this ADC?
- A: It uses a Successive Approximation Register (SAR) architecture with a sample-and-hold (S/H) circuit.
- Q: What is the package type?
- A: It is available in an 8-TSSOP or 8-MSOP package.
