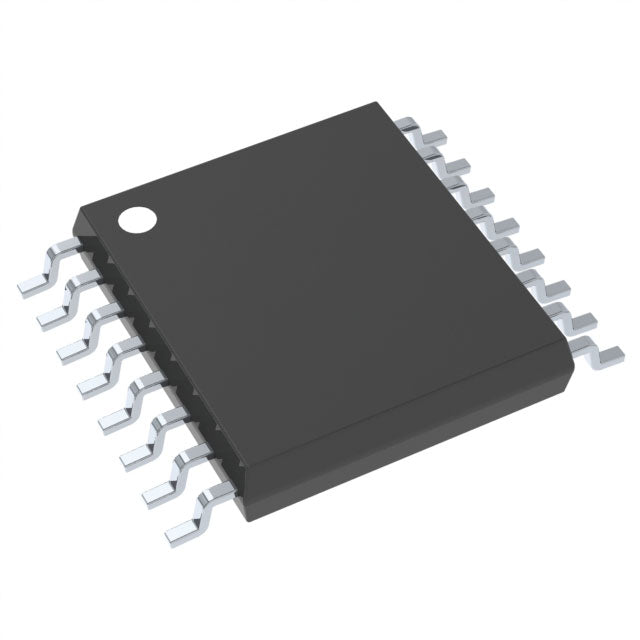

Texas Instruments ADS8329IPW
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.01 | $17.01 |
| 15+ | $16.48 | $247.20 |
| 25+ | $16.12 | $403.00 |
| 50+ | $15.22 | $761.00 |
| 100+ | $13.43 | $1,343.00 |
| N+ | $2.69 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tube |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.65V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| ROHS |  |
The Texas Instruments ADS8329IPW is a 16-bit analog-to-digital converter (ADC) offering a fast sampling rate of 1 MSPS. This single-channel device uses a sample-and-hold architecture and communicates via a standard SPI interface, simplifying system integration. Housed in a space-saving 16-TSSOP package, it operates over a wide temperature range of -40°C to 85°C. This ADC is an excellent choice for applications requiring high accuracy and speed, such as industrial process control, medical instrumentation, and portable data acquisition systems.
- High Accuracy: 16-bit resolution ensures precise digital representation of analog signals, critical for measurement and control systems.
- Fast Conversion: The 1 MSPS sampling rate enables real-time processing of dynamic signals.
- Easy Integration: The standard SPI interface simplifies connection to a wide variety of microcontrollers and DSPs.
- Robust Design: Operates reliably across a -40°C to 85°C temperature range, suitable for industrial use.
Precision Data Logging
The 16-bit resolution and 1 MSPS sampling rate of the ADS8329IPW make it perfect for high-accuracy data logging systems that need to capture fast, transient signals.
Industrial Automation Sensors
Its SPI interface and wide temperature range (-40°C to 85°C) allow for direct integration into industrial sensor modules for reliable data acquisition in harsh conditions.
Medical Monitoring Devices
The high precision of this ADC is critical for medical devices like ECG and EEG machines, where accurate signal representation is essential for diagnosis.
Embedded Control Systems
The compact TSSOP package and SPI interface make it easy to embed in microcontroller-based control systems for motor control or power monitoring.
Portable Instrumentation
Low power consumption and small footprint make the ADS8329IPW suitable for battery-powered portable instruments requiring high-resolution measurements.
- Q: What is the resolution of the ADS8329IPW?
- A: The ADS8329IPW is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate of this ADC?
- A: It supports a maximum sampling rate of 1 MSPS (1M samples per second).
- Q: How many input channels does the ADS8329IPW have?
- A: It features a single (1) input channel.
- Q: What digital interface does this ADC use?
- A: It uses a Serial Peripheral Interface (SPI) for communication.
- Q: What is the architecture of the ADS8329IPW?
- A: It uses a Sample-and-Hold (S/H) ADC architecture.
- Q: What is the package type for this part?
- A: It is available in a 16-TSSOP package.
