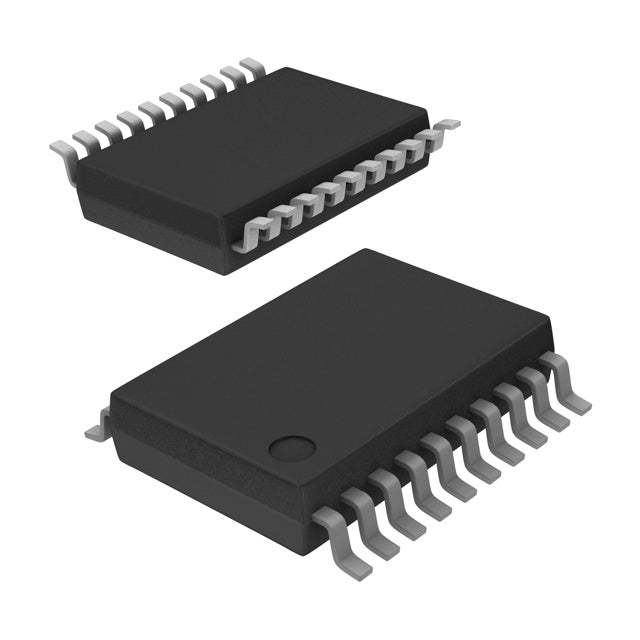

Texas Instruments ADS8344N/1K
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.58 | $16.58 |
| 15+ | $16.05 | $240.75 |
| 25+ | $15.71 | $392.75 |
| 50+ | $14.83 | $741.50 |
| 100+ | $13.09 | $1,309.00 |
| N+ | $2.62 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 4, 8 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-MUX-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP |
| ROHS |  |
The ADS8344N/1K from Texas Instruments is a 16-bit, 8-channel analog-to-digital converter with a sampling rate of 100k SPS. It features a flexible MUX-S/H-MUX-ADC architecture and communicates via a standard SPI interface. The device supports 4 or 8 input channels, making it highly adaptable for multi-sensor applications. With an external reference and an operating temperature range of -40°C to 85°C, this ADC is designed for industrial data acquisition, medical instrumentation, and automotive systems. The 20-SSOP package offers a compact solution for space-constrained designs.
- Flexible Channel Configuration: Supports 4 or 8 inputs, providing design flexibility for various sensor counts.
- High Resolution: 16-bit accuracy ensures precise measurement in demanding applications.
- Standard SPI Interface: Easy integration with most microcontrollers and digital signal processors.
- Wide Operating Range: -40°C to 85°C suitable for industrial environments.
- Compact SSOP Package: Saves board space while maintaining performance.
8-Channel Sensor Monitoring
The configurable 8-channel input allows direct connection of multiple sensors in industrial monitoring systems, simplifying PCB layout and reducing external multiplexing circuitry.
Data Acquisition Cards
With 16-bit resolution and 100k SPS, it is ideal for PC-based data acquisition cards used in test and measurement applications.
Medical Imaging Systems
The high resolution and multiple channels support precise signal digitization in ultrasound and other medical imaging equipment.
Automotive Battery Management
Multiple channels can monitor cell voltages and temperatures in battery management systems, with SPI interface for isolation-friendly communication.
Industrial Automation
The external reference and wide temperature range make it suitable for PLC analog input modules and process controllers.
- Q: What is the resolution of the ADS8344N/1K?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The maximum sampling rate is 100k SPS.
- Q: How many channels are available?
- A: It supports 4 or 8 input channels (configurable).
- Q: What interface does it use?
- A: It uses a standard SPI serial interface.
- Q: What is the architecture?
- A: It uses a MUX-S/H-MUX-ADC architecture.
- Q: What is the package type?
- A: It is available in a 20-SSOP package.
