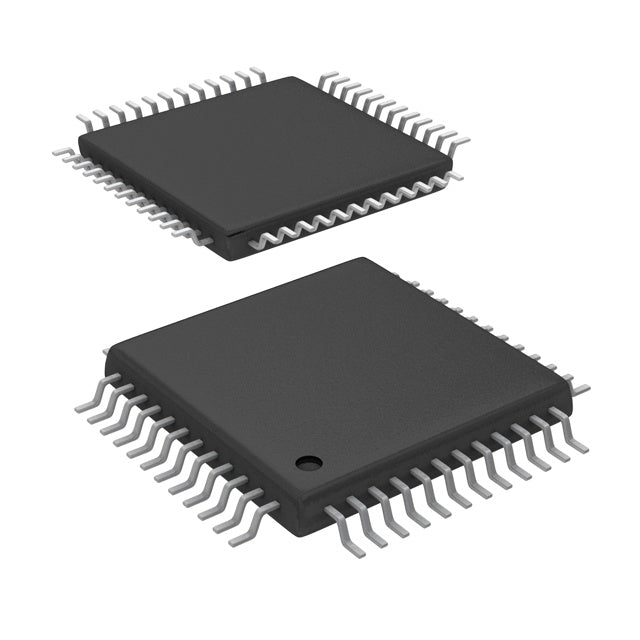

Texas Instruments ADS8411IBPFBT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $70.15 | $70.15 |
| 15+ | $67.93 | $1,018.95 |
| 25+ | $66.46 | $1,661.50 |
| 50+ | $62.76 | $3,138.00 |
| 100+ | $55.38 | $5,538.00 |
| N+ | $11.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | microPOWER™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 2M |
| Number of Inputs | 1 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-TQFP |
| Supplier Device Package | 48-TQFP (7x7) |
| ROHS |  |
The ADS8411IBPFBT from Texas Instruments is a 16-bit, 2 MSPS analog-to-digital converter with a single input channel. It features a parallel interface and a sample-and-hold architecture, providing high-speed and accurate conversions. The device operates over a temperature range of -40°C to 85°C and is available in a 48-TQFP package. It is well-suited for industrial, medical, and automotive applications where precision and reliability are paramount.
- High Accuracy: 16-bit resolution delivers precise digital representation of analog signals.
- Fast Conversion: 2 MSPS sampling rate supports real-time applications.
- Parallel Interface: Enables efficient data transfer to microcontrollers and DSPs.
- Reliable Operation: -40°C to 85°C temperature range ensures performance in harsh environments.
- Industry-Standard Package: 48-TQFP package is easy to solder and integrate.
Industrial Process Control
The ADS8411IBPFBT's 16-bit resolution and 2 MSPS sampling rate make it ideal for industrial process control systems that require accurate, real-time monitoring of analog signals.
Data Acquisition Systems
In multi-channel data acquisition systems, this ADC provides high accuracy and speed, ensuring reliable data capture for analysis and logging.
Medical Instrumentation
For patient monitoring and diagnostic equipment, the high resolution ensures precise measurement of physiological signals, contributing to better clinical outcomes.
Automotive Sensor Interfaces
The wide temperature range and robust performance make it suitable for automotive sensor applications, such as engine control and battery management systems.
Precision Test Equipment
In benchtop multimeters and calibrators, the ADS8411IBPFBT offers the accuracy and stability needed for precise measurements.
Energy Management
For power monitoring and smart grid applications, this ADC can accurately digitize voltage and current signals for efficient energy management.
- Q: What is the resolution of the ADS8411IBPFBT?
- A: The ADS8411IBPFBT is a 16-bit ADC.
- Q: What is the sampling rate?
- A: It has a maximum sampling rate of 2 MSPS (2M SPS).
- Q: How many channels does it have?
- A: It features a single (1) input channel.
- Q: What interface does it support?
- A: It uses a parallel interface.
- Q: What is the architecture?
- A: It uses a sample-and-hold (S/H) ADC architecture.
- Q: What is the package type?
- A: It is available in a 48-TQFP package.
