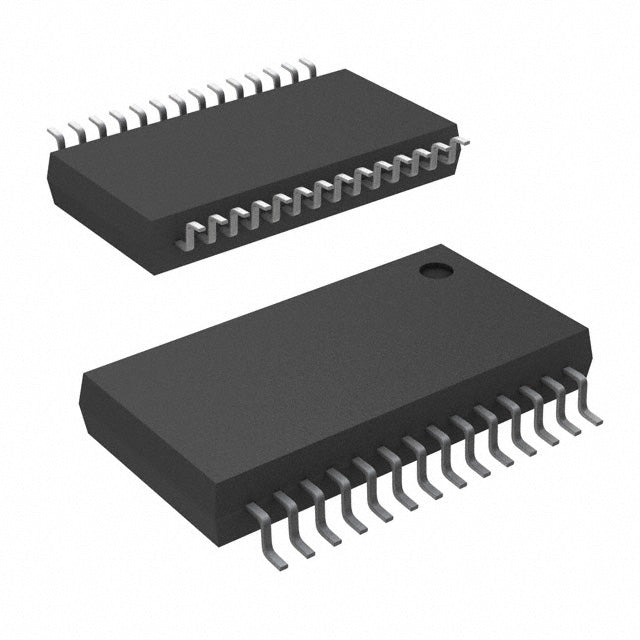

Texas Instruments ADS8509IDB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $26.39 | $26.39 |
| 15+ | $25.56 | $383.40 |
| 25+ | $25.00 | $625.00 |
| 50+ | $23.61 | $1,180.50 |
| 100+ | $20.84 | $2,084.00 |
| N+ | $4.17 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The ADS8509IDB is a 16-bit, 250k SPS analog-to-digital converter from Texas Instruments. It features a single input channel with sample-and-hold architecture and supports both external and internal references. The SPI interface provides easy digital connectivity. Housed in a 28-SSOP package, it operates over -40°C to 85°C, making it suitable for a wide range of industrial and medical applications.
