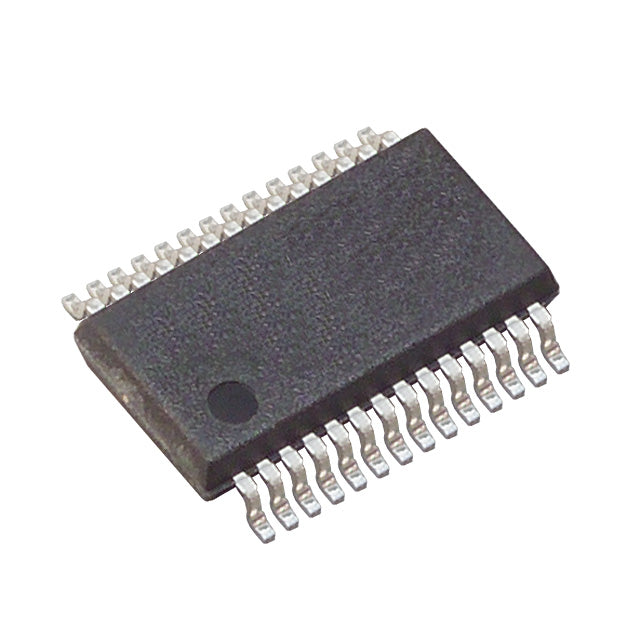

Texas Instruments ADS8515IDB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.85 | $13.85 |
| 15+ | $13.41 | $201.15 |
| 25+ | $13.12 | $328.00 |
| 50+ | $12.39 | $619.50 |
| 100+ | $10.94 | $1,094.00 |
| N+ | $2.19 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tube |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.65V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The ADS8515IDB is a 16-bit, high-speed analog-to-digital converter from Texas Instruments. It features a single input channel and a fast sampling rate of 250k SPS. With its parallel interface, this ADC is designed for applications requiring high data throughput, such as industrial automation, medical imaging, and test equipment.
- High-Speed Performance: 250k SPS sampling rate enables capture of fast-changing signals for real-time applications.
- High Resolution: 16-bit resolution ensures accurate representation of the analog input signal.
- Fast Parallel Interface: Parallel output allows for high-speed data transfer to microprocessors or DSPs.
- Flexible Reference: Supports both external and internal voltage references for design flexibility.
High-Speed Data Acquisition
The ADS8515IDB, with its 250k SPS sampling rate and 16-bit resolution, is perfect for high-speed data acquisition systems in applications like vibration analysis and transient recording.
Industrial Automation
In industrial automation, this ADC can be used for precise motor control and monitoring, where fast and accurate conversion of analog signals is required for real-time feedback loops.
Medical Imaging
The high speed and resolution make it suitable for medical imaging equipment, such as ultrasound systems, where rapid digitization of analog signals is essential for image quality.
Test and Measurement Equipment
For benchtop instruments like digital multimeters and oscilloscopes, the ADS8515IDB provides the necessary performance for accurate and fast measurements.
Communication Systems
In communication systems, this ADC can be used in base stations for digitizing intermediate frequency (IF) signals, enabling digital signal processing for improved performance.
- Q: What is the ADS8515IDB?
- A: It is a 16-bit, high-speed analog-to-digital converter (ADC) from Texas Instruments with a S/H-ADC architecture.
- Q: What is the resolution of the ADS8515IDB?
- A: It offers a resolution of 16 bits.
- Q: What is the sampling rate?
- A: The ADS8515IDB has a high sampling rate of 250k SPS.
- Q: How many channels does it have?
- A: It is a single-channel (1 input) ADC.
- Q: What interface does it use?
- A: It uses a parallel interface for high-speed data transfer.
- Q: What is the package type?
- A: It is available in a 28-SSOP package.
