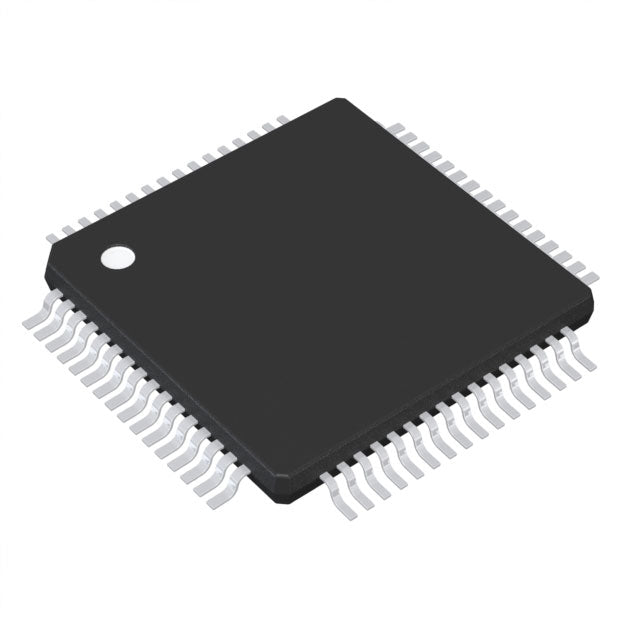

Texas Instruments ADS8584SIPMR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $15.86 | $15.86 |
| 15+ | $15.35 | $230.25 |
| 25+ | $15.02 | $375.50 |
| 50+ | $14.19 | $709.50 |
| 100+ | $12.52 | $1,252.00 |
| N+ | $2.50 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 330k |
| Number of Inputs | 4 |
| Input Type | Single Ended |
| Data Interface | Parallel, Serial |
| Configuration | PGA-ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 4 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 2.3V ~ 5.25V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |
| ROHS |  |
The Texas Instruments ADS8584SIPMR is a high-performance 16-bit analog-to-digital converter (ADC) engineered for precision data acquisition. It features a 330k SPS sampling rate and 4 input channels, ensuring fast and accurate signal conversion. With both parallel and serial interfaces, it offers flexible connectivity to microcontrollers and DSPs. Its PGA-ADC architecture and support for external or internal references make it a versatile choice for industrial, automotive, and medical applications.
- High-Speed Precision: 16-bit resolution at 330k SPS ensures accurate capture of dynamic signals without compromising speed.
- Flexible Integration: Dual Parallel and Serial interfaces allow easy connection to a wide range of host processors.
- Robust Operation: Wide temperature range (-40°C to 125°C) ensures reliable performance in harsh environments.
- Built-in PGA: The integrated programmable gain amplifier (PGA) allows direct connection to sensors with varying output levels, simplifying signal conditioning.
Industrial Data Acquisition Systems
The 16-bit resolution and 330k SPS sampling rate make the ADS8584SIPMR ideal for high-speed, multi-channel data acquisition systems in industrial automation, ensuring precise capture of fast-changing signals.
Motor Control and Power Monitoring
With 4 simultaneous-sampling channels and a PGA front-end, this ADC can accurately measure phase currents and voltages in motor drives, enabling efficient field-oriented control algorithms.
Medical Instrumentation
The high resolution and low noise performance are suitable for medical imaging and patient monitoring equipment where signal fidelity is critical for accurate diagnosis.
Test and Measurement Equipment
The parallel interface allows for high-throughput data streaming to FPGAs or DSPs, making it suitable for benchtop instruments like oscilloscopes and spectrum analyzers.
Automotive Battery Management
Operating over a wide temperature range (-40°C to 125°C), the ADS8584SIPMR can reliably monitor cell voltages and temperatures in automotive battery packs, ensuring safety and longevity.
Vibration and Acoustic Analysis
The combination of 16-bit resolution and 330k SPS enables detailed analysis of vibration signatures in rotating machinery, facilitating predictive maintenance in industrial plants.
- Q: What is the resolution of the ADS8584SIPMR?
- A: The ADS8584SIPMR is a 16-bit analog-to-digital converter (ADC).
- Q: What is the sampling rate of this ADC?
- A: It supports a sampling rate of 330k SPS (samples per second).
- Q: How many input channels does the ADS8584SIPMR have?
- A: This device features 4 input channels.
- Q: What interfaces are available on the ADS8584SIPMR?
- A: It offers both Parallel and Serial interfaces for flexible data transfer.
- Q: What is the architecture of this ADC?
- A: It uses a PGA-ADC (Programmable Gain Amplifier - ADC) architecture.
- Q: What is the package type for the ADS8584SIPMR?
- A: It is available in a 64-LQFP package.
