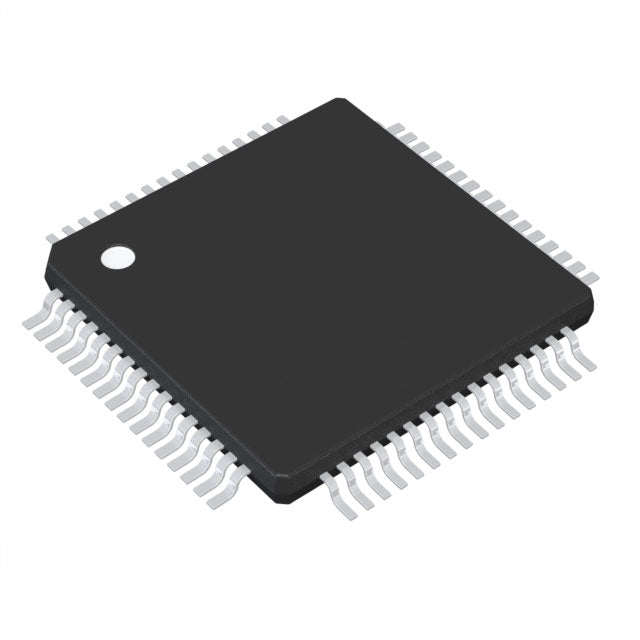

Texas Instruments ADS8588HIPM
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $31.75 | $31.75 |
| 15+ | $30.75 | $461.25 |
| 25+ | $30.08 | $752.00 |
| 50+ | $28.41 | $1,420.50 |
| 100+ | $25.07 | $2,507.00 |
| N+ | $5.01 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tray | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | Parallel, Serial |
| Configuration | PGA-ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 8 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 2.3V ~ 5.25V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |
| ROHS |  |
The ADS8588HIPM from Texas Instruments is a robust 16-bit, 8-channel analog-to-digital converter (ADC) with a sampling rate of 500 kSPS. It integrates programmable gain amplifiers (PGAs) in its architecture, allowing direct connection to sensors with varying signal levels. Supporting both parallel and serial interfaces, it offers design flexibility. Housed in a 64-LQFP package, this ADC operates from -40°C to 125°C, making it ideal for industrial automation, power monitoring, and medical applications.
- 8-Channel Simultaneous Sampling: Captures multiple signals with minimal phase delay.
- Integrated PGA: Eliminates need for external signal conditioning, saving board space.
- Flexible Interface: Supports both parallel and serial communication for easy integration.
- High Accuracy: 16-bit resolution ensures precise measurement in demanding applications.
- Wide Operating Range: -40°C to 125°C temperature range for industrial environments.
Multi-Channel Data Acquisition
The ADS8588HIPM's 8 channels and 500 kSPS sampling rate make it perfect for multi-channel data acquisition systems in industrial and laboratory settings.
Power Quality Monitoring
With its PGA-ADC architecture and 16-bit resolution, it can accurately measure voltage and current in three-phase power systems for harmonic analysis.
Industrial Process Control
The wide temperature range and 8 input channels allow for simultaneous monitoring of multiple process variables like temperature, pressure, and flow.
Medical Monitoring Equipment
Its high channel count and precision make it suitable for ECG, EEG, and other bio-signal acquisition systems.
Automotive Battery Management
The ADS8588H can monitor multiple cell voltages in battery packs, ensuring safe and efficient operation in electric vehicles.
Vibration Analysis
Multiple synchronized channels enable accurate phase and amplitude measurement in structural health monitoring and predictive maintenance.
- Q: What is the resolution of the ADS8588HIPM?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The ADS8588H supports a sampling rate of 500 kSPS.
- Q: How many channels does it have?
- A: It features 8 input channels.
- Q: What interfaces are supported?
- A: It supports both Parallel and Serial interfaces.
- Q: What is the architecture?
- A: It uses a PGA-ADC architecture with integrated programmable gain amplifiers.
- Q: What is the package type?
- A: It is available in a 64-LQFP package.
