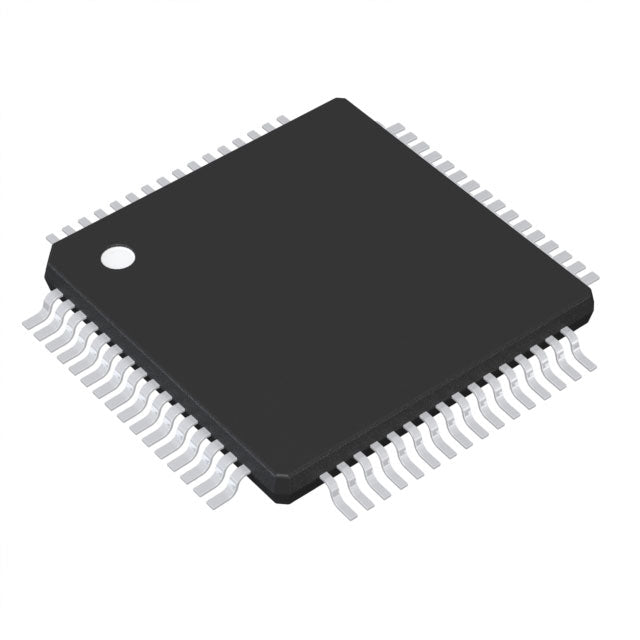

Texas Instruments ADS8588SIPM
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $28.31 | $28.31 |
| 15+ | $27.42 | $411.30 |
| 25+ | $26.82 | $670.50 |
| 50+ | $25.33 | $1,266.50 |
| 100+ | $22.35 | $2,235.00 |
| N+ | $4.47 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tray | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 200k |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | Parallel, Serial |
| Configuration | PGA-ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 8 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 2.3V ~ 5.25V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |
| ROHS |  |
The ADS8588SIPM from Texas Instruments is a high-performance 16-bit Analog-to-Digital Converter (ADC) designed for demanding multi-channel applications. With 8 simultaneous sampling channels and a maximum sampling rate of 200k SPS, this ADC delivers exceptional accuracy and speed. Its PGA-ADC architecture includes a programmable gain amplifier, allowing direct connection to a wide range of sensors without external signal conditioning. The ADS8588SIPM supports both parallel and serial interfaces for flexible system integration. Operating over a wide -40°C to 125°C temperature range and available in a 64-LQFP package, it is ideal for industrial, automotive, and medical applications requiring high precision and reliability.
- Simultaneous Sampling: All 8 channels sample simultaneously, ensuring accurate phase correlation between multiple signals, critical for power and vibration analysis.
- Integrated PGA: The built-in programmable gain amplifier allows direct sensor connection, eliminating external op-amps and simplifying the analog front-end.
- Dual Interface Options: Both parallel and serial interfaces provide design flexibility, enabling easy integration with various microcontrollers and DSPs.
- Wide Temperature Range: The -40°C to 125°C operating range ensures reliable performance in harsh automotive and industrial environments.
High-Precision Data Acquisition Systems
The ADS8588SIPM's 16-bit resolution and 200k SPS sampling rate make it ideal for high-precision data acquisition systems in industrial automation, test and measurement, and scientific instrumentation where accuracy is paramount.
Industrial Automation and Control
With its 8 simultaneous sampling channels and built-in PGA, the ADS8588SIPM can directly interface with various industrial sensors, including current shunts, thermocouples, and strain gauges, simplifying signal conditioning and improving system reliability.
Medical Instrumentation
The high resolution and wide temperature range (-40°C to 125°C) of the ADS8588SIPM make it suitable for medical devices such as patient monitors, ultrasound equipment, and diagnostic systems that require accurate and reliable signal conversion.
Automotive Sensor Interfaces
The ADS8588SIPM's robust temperature range and PGA capability make it well-suited for automotive applications, including battery management systems, motor control, and vehicle dynamics monitoring, where multiple sensors need precise digitization.
Power System Monitoring
In power quality analyzers and smart grid equipment, the ADS8588SIPM can simultaneously sample voltage and current waveforms from multiple phases, enabling accurate power calculation and harmonic analysis.
- Q: What type of ADC is the ADS8588SIPM?
- A: The ADS8588SIPM is a 16-bit Analog-to-Digital Converter (ADC) with a PGA-ADC architecture, featuring a built-in programmable gain amplifier.
- Q: What is the resolution of the ADS8588SIPM?
- A: The ADS8588SIPM offers a high resolution of 16 bits, providing 65,536 discrete output levels for precise measurements.
- Q: What is the sampling rate of the ADS8588SIPM?
- A: The ADS8588SIPM achieves a maximum sampling rate of 200k SPS (samples per second).
- Q: How many input channels does the ADS8588SIPM have?
- A: The ADS8588SIPM features 8 input channels, allowing simultaneous sampling of multiple analog signals.
- Q: What interfaces does the ADS8588SIPM support?
- A: The ADS8588SIPM supports both parallel and serial interfaces, providing flexible connectivity options for various system architectures.
- Q: What is the package type for the ADS8588SIPM?
- A: The ADS8588SIPM is available in a 64-LQFP package, suitable for compact PCB designs.
