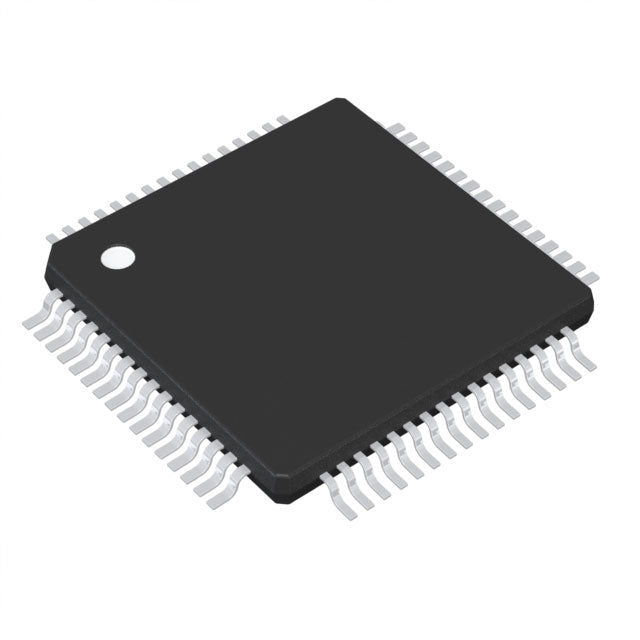

Texas Instruments ADS8598SIPM
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $32.60 | $32.60 |
| 15+ | $31.57 | $473.55 |
| 25+ | $30.89 | $772.25 |
| 50+ | $29.17 | $1,458.50 |
| 100+ | $25.74 | $2,574.00 |
| N+ | $5.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tray | |
| Number of Bits | 18 |
| Sampling Rate (Per Second) | 200k |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | Parallel, Serial |
| Configuration | PGA-ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 8 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 2.3V ~ 5.25V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |
| ROHS |  |
The ADS8598SIPM from Texas Instruments is an 18-bit, 8-channel analog-to-digital converter with a sampling rate of 200k SPS. It features a PGA-ADC architecture with a built-in programmable gain amplifier, allowing direct connection to a variety of sensors. Supporting both Parallel and Serial interfaces, it offers flexible integration options. Housed in a 64-LQFP package, this ADC is designed for demanding applications such as power grid monitoring, multi-phase motor control, and industrial automation.
- 8 Simultaneous Sampling Channels: Enables accurate multi-phase and multi-sensor measurements.
- High 18-bit Resolution: Provides detailed and precise signal digitization.
- Built-in PGA: Allows direct sensor interfacing, reducing external component count.
- Wide Temperature Range: Operates from -40°C to 125°C, suitable for harsh industrial environments.
Power Grid Monitoring
The ADS8598SIPM's 8 channels and 18-bit resolution are ideal for monitoring voltage and current in power grid protection and control systems.
Multi-Phase Motor Control
With 8 simultaneous sampling channels, this ADC can accurately capture all phase currents and voltages in multi-phase motor drives for precise control.
Industrial Automation
In complex industrial automation, the ADS8598SIPM provides high-resolution, multi-channel data acquisition for PLCs and distributed control systems.
Data Acquisition Systems
The combination of 8 channels, 200k SPS, and parallel/serial interfaces makes it a versatile choice for high-channel-count data acquisition systems.
Test and Measurement
For multi-channel test equipment, this ADC offers the resolution and speed needed to accurately characterize electronic devices and systems.
- Q: What is the resolution of the ADS8598SIPM?
- A: The ADS8598SIPM is an 18-bit analog-to-digital converter.
- Q: What is the sampling rate of the ADS8598SIPM?
- A: It has a sampling rate of 200k SPS.
- Q: How many channels does the ADS8598SIPM have?
- A: It features 8 input channels.
- Q: What interfaces are supported by the ADS8598SIPM?
- A: It supports both Parallel and Serial interfaces.
- Q: What is the architecture of the ADS8598SIPM?
- A: It uses a PGA-ADC architecture with a programmable gain amplifier.
- Q: What is the package type for the ADS8598SIPM?
- A: It comes in a 64-LQFP package.
