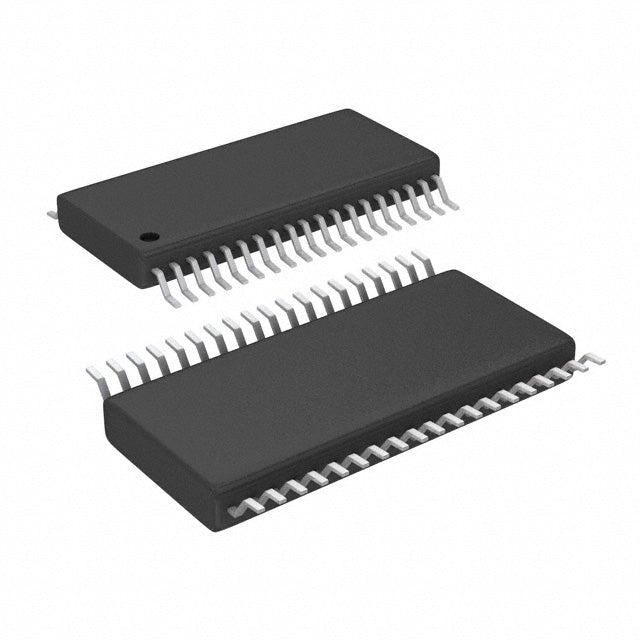

Texas Instruments ADS8698IDBT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $26.23 | $26.23 |
| 15+ | $25.40 | $381.00 |
| 25+ | $24.85 | $621.25 |
| 50+ | $23.47 | $1,173.50 |
| 100+ | $20.71 | $2,071.00 |
| N+ | $4.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 18 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | PGA-MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.65V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 38-TFSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 38-TSSOP |
| ROHS |  |
The ADS8698IDBT is an 18-bit, 500k SPS analog-to-digital converter from Texas Instruments. It features 8 multiplexed input channels with a programmable gain amplifier (PGA) and sample-and-hold architecture. It supports both external and internal references. The SPI interface simplifies digital integration. Packaged in a 38-TFSOP, it is designed for high-precision, multi-channel industrial and medical applications.
- High Resolution: 18-bit resolution provides exceptional measurement precision.
- 8-Channel Multiplexing: Monitor up to 8 analog signals with a single ADC.
- Integrated PGA: Programmable gain amplifier allows direct connection to various sensor outputs.
- Wide Temperature Range: Operates from -40°C to 125°C for harsh environments.
- Flexible Reference: Internal or external reference options for design flexibility.
Industrial Process Control
8 channels and 18-bit resolution allow precise monitoring of multiple process variables like temperature and pressure.
Power Grid Monitoring
High resolution and 500k SPS sampling enable accurate measurement of power quality and grid parameters.
Medical Instrumentation
18-bit precision is suitable for high-accuracy medical devices such as patient monitors and diagnostic equipment.
Data Acquisition Systems
Multichannel input and SPI interface make it ideal for building scalable DAQ systems.
Automotive Battery Management
Wide temperature range (-40°C to 125°C) supports monitoring of battery voltages and currents in EVs.
Precision Weighing
High resolution enables accurate measurement in industrial scales and load cell applications.
- Q: What is the resolution of the ADS8698IDBT?
- A: It is an 18-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The sampling rate is 500k SPS.
- Q: How many channels does it have?
- A: It has 8 input channels.
- Q: What interface does it use?
- A: It uses an SPI interface.
- Q: What is the architecture?
- A: It uses a PGA-MUX-S/H-ADC architecture.
- Q: What is the package type?
- A: It comes in a 38-TFSOP package.
