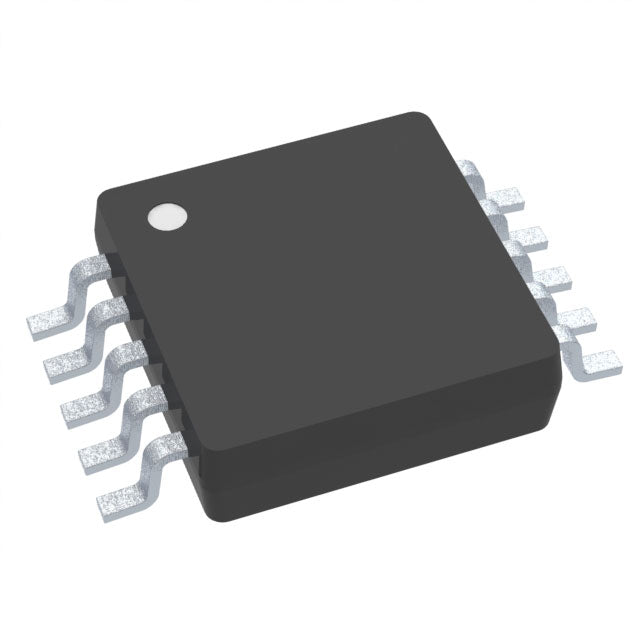

Texas Instruments ADS8861IDGSR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.01 | $17.01 |
| 15+ | $16.47 | $247.05 |
| 25+ | $16.11 | $402.75 |
| 50+ | $15.22 | $761.00 |
| 100+ | $13.43 | $1,343.00 |
| N+ | $2.69 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | microPOWER™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 1.65V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
| ROHS |  |
The ADS8861IDGSR from Texas Instruments is a 16-bit, 1 MSPS single-channel analog-to-digital converter featuring an SPI interface. With sample-and-hold architecture and external reference support, it delivers high-precision conversion for industrial and medical applications. Operating from -40°C to 85°C, this ADC is available in a compact 10-MSOP package, ideal for space-constrained designs.
- High Resolution: 16-bit accuracy ensures precise measurement of small analog signals.
- Fast SPI Interface: Simplifies connection to microcontrollers and reduces pin count.
- Low Power Operation: Suitable for battery-powered and portable devices.
- Compact Package: 10-MSOP footprint enables dense PCB layouts.
Precision Sensor Measurement
The 16-bit resolution and 1 MSPS rate enable accurate digitization of temperature, pressure, and strain gauge sensors in industrial IoT applications.
Portable Medical Devices
Low power consumption and SPI interface make it suitable for battery-powered patient monitors and wearable health trackers.
Data Acquisition Systems
The high resolution and SPI interface simplify integration with microcontrollers in multi-channel DAQ systems for laboratory use.
Automotive Battery Monitoring
Wide temperature range and precision make it ideal for monitoring voltage and current in electric vehicle battery management systems.
Industrial Process Control
In factory automation, the ADS8861IDGSR provides accurate conversion of analog control signals for precise actuator positioning.
Energy Harvesting Systems
The low-power SPI interface supports efficient operation in energy-constrained wireless sensor nodes.
- Q: What is the resolution of the ADS8861IDGSR?
- A: The ADS8861IDGSR is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It has a sampling rate of 1 MSPS (1M samples per second).
- Q: How many channels does it have?
- A: It is a single-channel (1 input) ADC.
- Q: What interface does it use?
- A: It uses an SPI (Serial Peripheral Interface) for communication.
- Q: What is the architecture?
- A: It uses a sample-and-hold (S/H) ADC architecture.
- Q: What package is available?
- A: It comes in a 10-TFSOP or 10-MSOP package (0.118", 3.00mm width).
