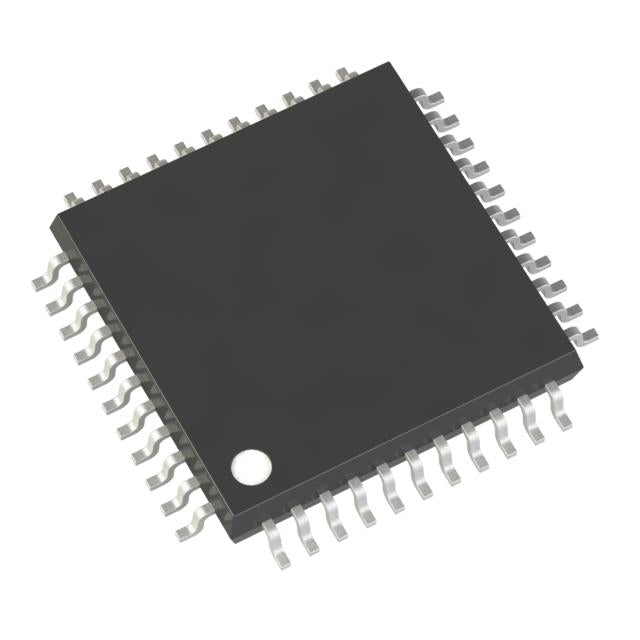

Analog Devices Inc. ADW71205WSTZ - Analog Devices 12-Bit Resolver-to-Digital Converter | Automotive Grade | 44-LQFP
Regular price
Dhs. 122.34
Regular price
Dhs. 128.78
Sale price
Dhs. 122.34
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 122.34 | Dhs. 122.34 |
| 15+ | Dhs. 118.48 | Dhs. 1,777.20 |
| 25+ | Dhs. 115.90 | Dhs. 2,897.50 |
| 50+ | Dhs. 109.46 | Dhs. 5,473.00 |
| 100+ | Dhs. 96.59 | Dhs. 9,659.00 |
| N+ | Dhs. 19.32 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
ADW71205WSTZ - High-Performance Automotive-Grade Resolver-to-Digital Converter
The ADW71205WSTZ from Analog Devices Inc. is a precision 12-bit, dual-channel resolver-to-digital converter (RDC) designed for demanding automotive and industrial applications. This surface-mount IC delivers reliable position sensing and motor control performance across extended temperature ranges from -40°C to 125°C.
Key Features & Benefits
- Automotive-Grade Reliability: Built to withstand harsh environments with full automotive qualification
- Dual-Channel Architecture: 2-channel design for enhanced accuracy and redundancy
- 12-Bit Resolution: Precise angular position measurement for critical control systems
- Serial Data Interface: Easy integration with microcontrollers and digital systems
- Wide Operating Range: -40°C to 125°C temperature tolerance for extreme conditions
- Compact 44-LQFP Package: Space-efficient 10x10mm surface-mount design
- RoHS Compliant: Environmentally friendly, lead-free construction
Applications
Ideal for automotive motor control, electric power steering (EPS), industrial servo systems, robotics, aerospace position sensing, and high-reliability motion control applications requiring precise angular feedback.
Authorized Distributor: We provide genuine Analog Devices components with full traceability, RoHS/REACH compliance documentation, and technical support for design-in applications.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tray | |
| Type | - |
| Number of Channels | 2 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | - |
| Data Interface | Serial |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | - |
| Package / Case | 44-LQFP |
| Supplier Device Package | 44-LQFP (10x10) |
| ROHS |  |
