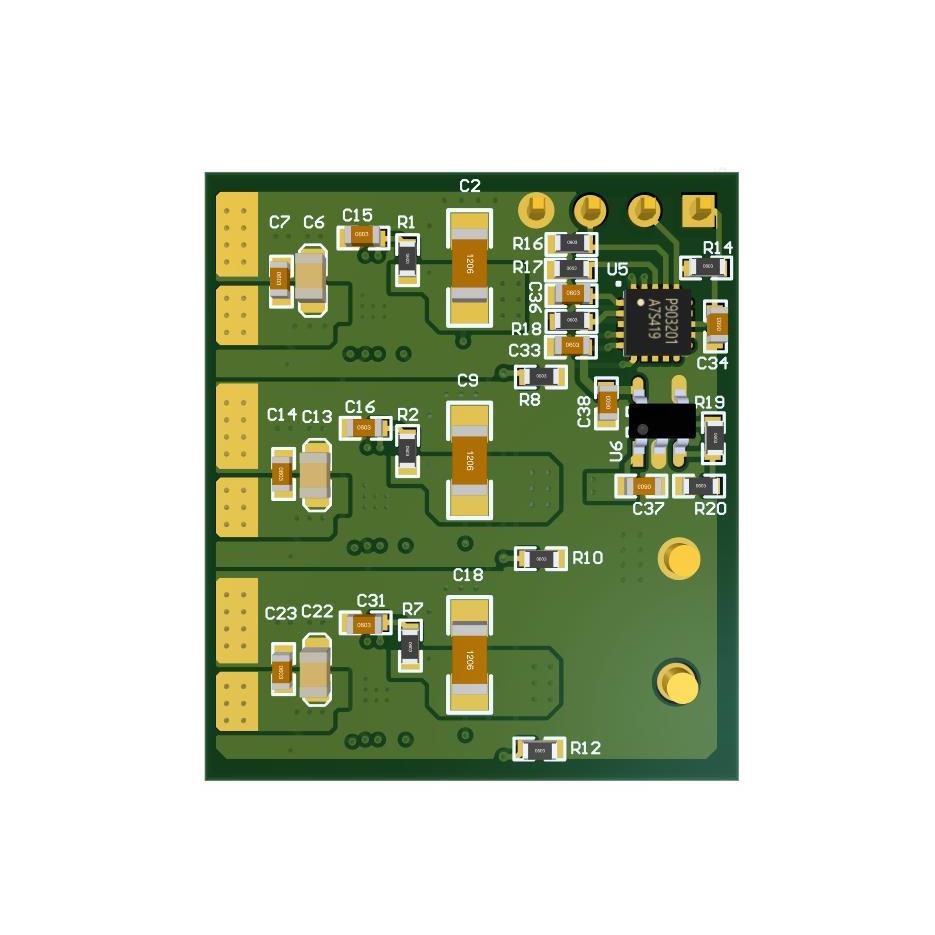

ARK Semiconductor AKM2700A00BMC
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.24 | $14.24 |
| 15+ | $13.79 | $206.85 |
| 25+ | $13.49 | $337.25 |
| 50+ | $12.74 | $637.00 |
| 100+ | $11.24 | $1,124.00 |
| N+ | $2.25 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | ARK Semiconductor |
| Product Series | |
| Packaging | Bag | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 3 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 2.6V |
| Current - Output | 6A |
| Frequency - Switching | Up to 3MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -45°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 108-LGA |
| Supplier Device Package | 8-LGA |
The AKM2700A00BMC from ARK Semiconductor is a high-frequency synchronous step-down DC-DC converter designed for space-constrained, high-current applications. It operates from an input voltage of 4.5V to 16V and delivers up to 6A of output current with an adjustable output from 0.6V to 2.6V. With a switching frequency up to 3MHz, it enables the use of very small external components, significantly reducing PCB area. The compact 108-LGA package is optimized for low parasitic inductance and excellent thermal performance. This converter is ideal for powering FPGAs, ASICs, and processors in networking, AI, and automotive systems.
- Up to 3MHz Switching Frequency: Enables miniature inductors and capacitors, drastically reducing solution size.
- 6A Output Current: Supports high-performance processors and FPGAs in a single small package.
- Wide Input Range (4.5V-16V): Compatible with 5V, 12V, and automotive power buses.
- 108-LGA Package: Provides low thermal resistance and minimal parasitic inductance for clean power delivery.
High-Density Point-of-Load for AI Accelerators
The AKM2700A00BMC, with its 6A output and up to 3MHz switching frequency, is perfect for powering AI accelerators and GPUs that require low-voltage (0.6V-1.0V) cores in compact form factors. The high frequency allows for tiny inductors, enabling ultra-dense power stages.
Networking Switches and Routers
In high-port-count networking gear, this buck converter efficiently steps down 12V to 0.8V-1.2V for packet processors. The 108-LGA package minimizes parasitic inductance, ensuring clean power delivery for high-speed digital logic.
FPGA Core Power in Communications
For 5G base stations and optical transceivers, the AKM2700A00BMC provides a precise, low-noise supply for FPGA cores. Its wide input range (4.5V-16V) accommodates various intermediate bus voltages.
Portable Medical Devices
In battery-powered medical monitors, this converter's high efficiency at light loads and small footprint make it ideal for generating 1.8V or 2.5V rails from a 5V supply, extending battery life while minimizing device size.
Automotive ADAS Cameras and Sensors
With a 16V input rating, the AKM2700A00BMC can handle automotive load-dump transients. It provides stable low-voltage power for image sensors and processors in ADAS modules, where space is at a premium.
- Q: What type of converter is the AKM2700A00BMC?
- A: It is a step-down (Buck) DC-DC converter.
- Q: What is the input voltage range?
- A: The input voltage range is 4.5V to 16V.
- Q: What is the output voltage range?
- A: The output is adjustable from 0.6V to 2.6V.
- Q: What is the maximum output current?
- A: It can deliver up to 6A of continuous output current.
- Q: What is the switching frequency?
- A: The switching frequency is up to 3MHz.
- Q: What package is available?
- A: It comes in a 108-LGA package.
