Advanced Linear Devices Inc. ALD500RAU-10SEL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $44.61 | $44.61 |
| 15+ | $10.26 | $153.90 |
| 25+ | $10.04 | $251.00 |
| 50+ | $9.48 | $474.00 |
| 100+ | $8.36 | $836.00 |
| N+ | $1.67 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Advanced Linear Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 18 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | - |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | ±5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

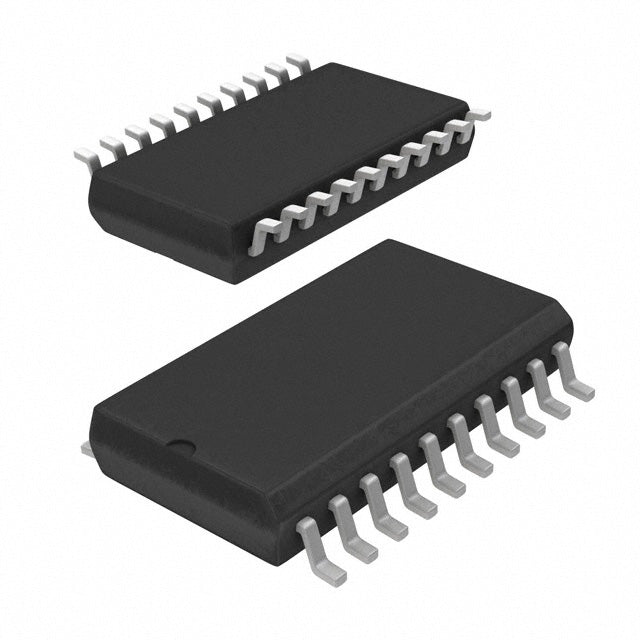

| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| ROHS |  |
The ALD500RAU-10SEL is an 18-bit analog-to-digital converter from Advanced Linear Devices, designed for high-precision single-channel applications. It features an external reference for flexible voltage scaling and operates over a 0°C to 70°C temperature range. Housed in a 20-SOIC package, this ADC is suitable for industrial instrumentation, weighing systems, and data acquisition applications where high resolution is paramount.
- Ultra-High Resolution: 18-bit resolution provides exceptional detail for precision measurement.
- External Reference: Allows customization of input voltage range for specific applications.
- Standard Package: 20-SOIC package is widely used and easy to solder.
- Reliable Performance: Designed for 0°C to 70°C commercial temperature ranges.
High-Resolution Measurement
The 18-bit resolution makes it suitable for high-precision measurement applications such as digital voltmeters and laboratory instruments.
Industrial Process Control
With an external reference, this ADC can be configured for accurate process control in industrial environments operating within 0°C to 70°C.
Weighing Systems
The high resolution is ideal for load cell and strain gauge interfaces in electronic scales and force measurement systems.
Data Acquisition Boards
The 20-SOIC package allows for easy integration into multi-channel data acquisition boards for scientific research.
Battery Monitoring
In battery management systems, the ALD500RAU-10SEL provides precise voltage monitoring for charge/discharge cycles.
- Q: What is the resolution of the ALD500RAU-10SEL?
- A: The resolution is 18 bits.
- Q: How many channels does the ALD500RAU-10SEL have?
- A: It has 1 channel.
- Q: What is the architecture of this ADC?
- A: It uses an ADC architecture with an external reference.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C.
- Q: What package is the ALD500RAU-10SEL available in?
- A: It comes in a 20-SOIC (0.295", 7.50mm Width) package.
- Q: Does the ALD500RAU-10SEL have a specified sampling rate?
- A: The sampling rate is not specified in the provided technical data.
