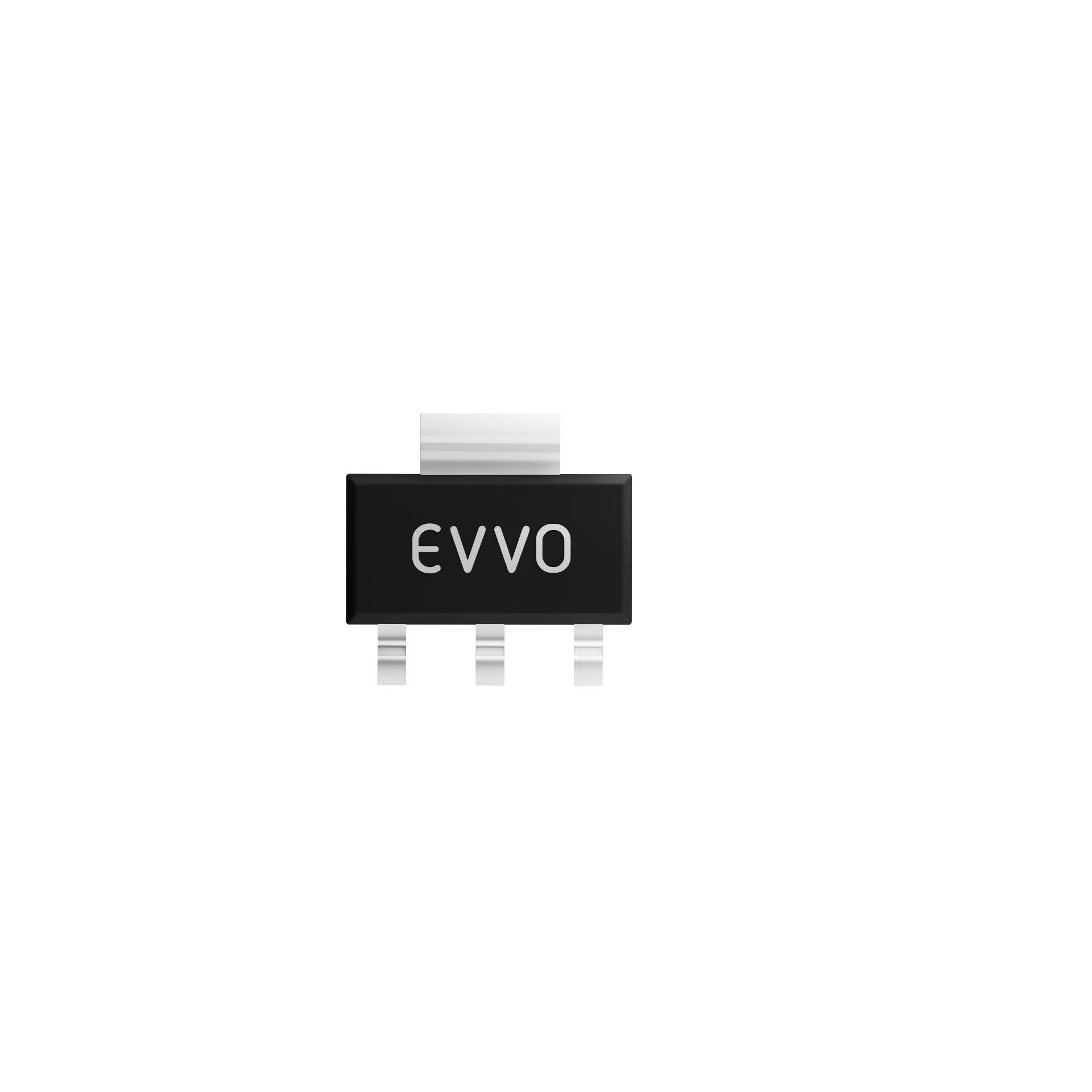

EVVO AMS1117-2.5
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.29 | $0.29 |
| 15+ | $0.29 | $4.35 |
| 25+ | $0.28 | $7.00 |
| 50+ | $0.26 | $13.00 |
| 100+ | $0.23 | $23.00 |
| N+ | $0.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | EVVO |
| Product Series | AMS1117 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 12V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.3V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 10 mA |
| Current - Supply (Max) | - |
| PSRR | 75dB (120Hz) |
| Control Features | Current Limit |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3L |
| ROHS |  |
The AMS1117-2.5 from EVVO is a reliable low-dropout linear regulator providing a fixed 2.5V output at up to 1A. With a dropout voltage of 1.3V at full load and 75dB PSRR at 120Hz, it delivers stable, clean power for a variety of applications. The SOT-223-3L package offers good thermal performance and ease of assembly.
- High Current Capability: 1A output supports a wide range of digital and analog loads.
- Good Ripple Rejection: 75dB PSRR at 120Hz effectively filters low-frequency noise.
- Wide Input Compatibility: Accepts input voltages up to 12V, making it flexible for various power sources.
- Cost-Effective Solution: SOT-223-3L package offers a balance of performance and cost for volume production.
General-Purpose Power Regulation
The 2.5V output at 1A makes this LDO a versatile choice for powering logic circuits, memory modules, and peripheral interfaces in embedded systems.
Post-Regulation for Switching Supplies
Use after a buck or flyback converter to provide a clean, stable 2.5V rail with 75dB PSRR at 120Hz, eliminating switching noise for sensitive loads.
Consumer Electronics
Ideal for set-top boxes, routers, and smart home devices that require a reliable 2.5V supply for core logic and I/O circuits.
Industrial Control
The SOT-223 package with good thermal characteristics makes it suitable for industrial controllers, PLCs, and motor drivers requiring stable low-voltage rails.
LED Display Drivers
Provides a stable 2.5V reference rail for LED driver ICs, ensuring consistent brightness and color accuracy in display panels.
Battery Charger Circuits
Can be used to power the control logic in battery charging systems, providing a stable 2.5V rail from a higher input voltage.
- Q: What is the output voltage of the AMS1117-2.5?
- A: The fixed output voltage is 2.5V.
- Q: What is the maximum output current?
- A: It can deliver up to 1A.
- Q: What is the input voltage range?
- A: The input voltage range is from 4.5V to 12V (typical for this family; verify in datasheet).
- Q: What is the dropout voltage?
- A: The dropout voltage is 1.3V at 1A load.
- Q: What is the quiescent current?
- A: The quiescent current is typically 10mA.
- Q: What package is available?
- A: It comes in a SOT-223-3L package.
