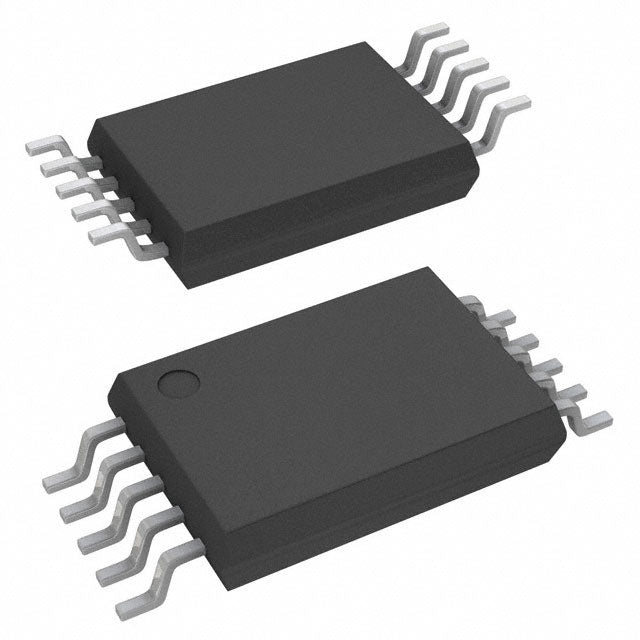

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Panasonic Electronic Components
AN8015SH-E1
Regular price
Dhs. 355,892.34
Regular price
Dhs. 374,623.52
Sale price
Dhs. 355,892.34
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,892.34 AED | Dhs. 355,892.34 AED |
| 15+ | Dhs. 344,653.64 AED | Dhs. 5,169,804.60 AED |
| 25+ | Dhs. 337,161.17 AED | Dhs. 8,429,029.25 AED |
| 50+ | Dhs. 318,429.99 AED | Dhs. 15,921,499.50 AED |
| 100+ | Dhs. 280,967.64 AED | Dhs. 28,096,764.00 AED |
| N+ | Dhs. 56,193.53 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Recycling Electronic Components
| Product attributes | Property Value |
| Manufacturer | Panasonic Electronic Components |
| Product Series | |
| Packaging | | |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Down |
| Output Configuration | Positive or Negative |
| Topology | Buck, Boost |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 3.6V ~ 34V |
| Frequency - Switching | 2kHz ~ 500kHz |
| Duty Cycle (Max) | 90% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-FSOP (0.169", 4.30mm Width) |
| Supplier Device Package | 10-SSOP |
AN8015SH-E1.pdf
×
