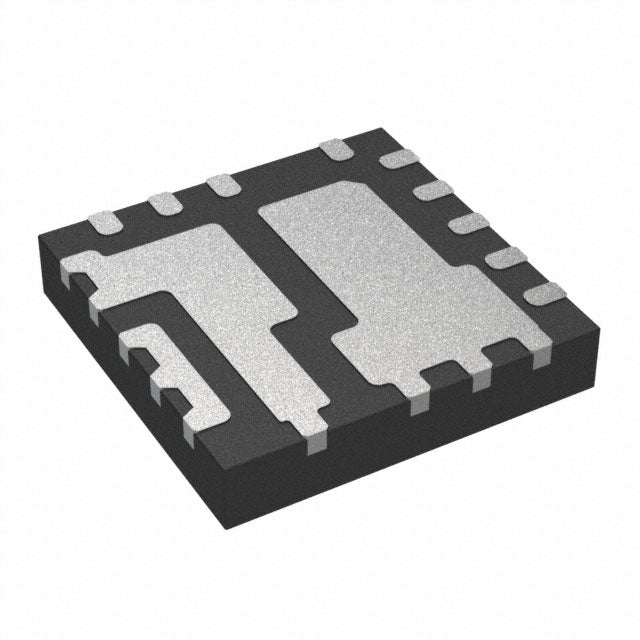

Alpha & Omega Semiconductor Inc. AOZ2152EQI-31
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.27 | $1.27 |
| 15+ | $1.23 | $18.45 |
| 25+ | $1.21 | $30.25 |
| 50+ | $1.14 | $57.00 |
| 100+ | $1.01 | $101.00 |
| N+ | $0.20 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Product Series | EZBuck™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 6.5V |
| Voltage - Input (Max) | 28V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 23.8V |
| Current - Output | 6A |
| Frequency - Switching | 1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 18-PowerWFQFN |
| Supplier Device Package | 18-QFN (3x3) |
| ROHS |  |
The AOZ2152EQI-31 is a synchronous buck converter from Alpha & Omega Semiconductor, designed for high-current applications. It accepts inputs from 6.5V to 28V and provides an adjustable output from 0.8V to 23.8V, delivering up to 6A. Operating at a fixed 1MHz frequency, it balances efficiency with component size. The 18-PowerWFQFN package ensures excellent thermal performance for demanding industrial and telecom environments.
- 6A continuous output current supports high-power processors and FPGAs.
- Wide input range (6.5V-28V) covers 12V and 24V industrial/telecom rails.
- 1MHz switching frequency reduces inductor size and output capacitance.
- 18-PowerWFQFN package provides low thermal resistance for high-current operation.
- Adjustable output down to 0.8V enables modern low-voltage logic rails.
High-Current Point-of-Load (POL) Converters
With 6A output capability, this buck converter is ideal for powering FPGAs, ASICs, and DSPs in networking and computing equipment, delivering stable low-voltage rails from a 12V or 24V bus.
Telecom and Datacom Equipment
The 6.5V-28V input range accommodates standard telecom voltages (12V, 24V), while the 1MHz frequency allows for compact magnetic components, reducing board space in high-density line cards.
Industrial Automation
Robust input range and high current support motor drivers, PLC I/O modules, and industrial sensors, ensuring reliable operation in harsh electrical environments.
Base Stations and RF Power Amplifiers
Low output ripple and high efficiency make it suitable for powering RF transceivers and PA bias circuits, improving signal integrity and thermal performance.
Gaming and High-Performance Computing
Delivers 6A to CPU/GPU core rails with fast transient response, maintaining voltage stability during heavy computational loads.
LED Display and Signage
Constant-voltage output for LED drivers in large displays, with the wide input range handling varying supply voltages in commercial installations.
- Q: What type of converter is the AOZ2152EQI-31?
- A: It is a Buck (step-down) DC-DC converter.
- Q: What is the input voltage range?
- A: The input voltage range is from 6.5V to 28V.
- Q: What is the output voltage range?
- A: The output voltage can be set from 0.8V to 23.8V.
- Q: What is the maximum output current?
- A: The maximum output current is 6A.
- Q: What is the switching frequency?
- A: The switching frequency is 1MHz.
- Q: What package is available?
- A: It comes in an 18-PowerWFQFN package.
