Diodes Incorporated AP3106MTR-G1
Regular price
Dhs. 355,877.81
Regular price
Dhs. 374,608.22
Sale price
Dhs. 355,877.81
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,877.81 | Dhs. 355,877.81 |
| 15+ | Dhs. 344,639.56 | Dhs. 5,169,593.40 |
| 25+ | Dhs. 337,147.40 | Dhs. 8,428,685.00 |
| 50+ | Dhs. 318,416.99 | Dhs. 15,920,849.50 |
| 100+ | Dhs. 280,956.17 | Dhs. 28,095,617.00 |
| N+ | Dhs. 56,191.23 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

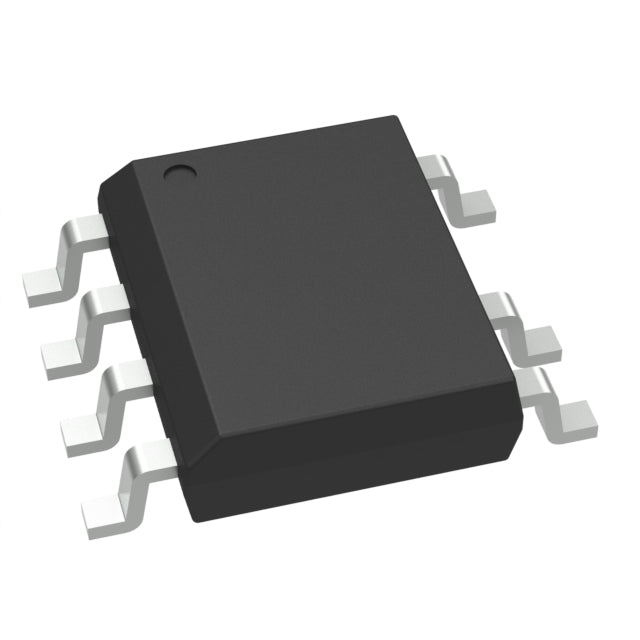

AP3106MTR-G1 Flyback PWM Controller IC
The AP3106MTR-G1 from Diodes Incorporated is a high-performance isolated flyback PWM controller designed for AC/DC offline switching power supply applications. This controller IC features comprehensive fault protection including current limiting, overload, over-temperature, over-voltage, and short circuit protection, ensuring reliable operation in demanding environments.
Key Features:
- Isolated Flyback Topology - Optimized for offline switching applications
- 65kHz Switching Frequency - Efficient power conversion with minimal EMI
- Wide Supply Voltage Range - 10V to 25V operation with 16V start-up
- 75% Maximum Duty Cycle - Flexible design capability
- Comprehensive Protection - Current limiting, overload, over-temperature, over-voltage, and short circuit
- Industrial Temperature Range - -40°C to +85°C ambient operation
- Compact 7-SO Package - Space-saving surface mount design
Applications:
Ideal for AC/DC power supplies, battery chargers, LED drivers, industrial control systems, and consumer electronics requiring isolated flyback conversion with robust protection features.
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 16 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 25V |
| Duty Cycle | 75% |
| Frequency - Switching | 65kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SO |
| ROHS |  |
AP3106MTR-G1.pdf
×
