Diodes Incorporated AP3125VKTR-G1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.85 | Dhs. 2.85 |
| 15+ | Dhs. 2.76 | Dhs. 41.40 |
| 25+ | Dhs. 2.70 | Dhs. 67.50 |
| 50+ | Dhs. 2.55 | Dhs. 127.50 |
| 100+ | Dhs. 2.25 | Dhs. 225.00 |
| N+ | Dhs. 0.45 | Price Inquiry |
Request Quote / Inquiry

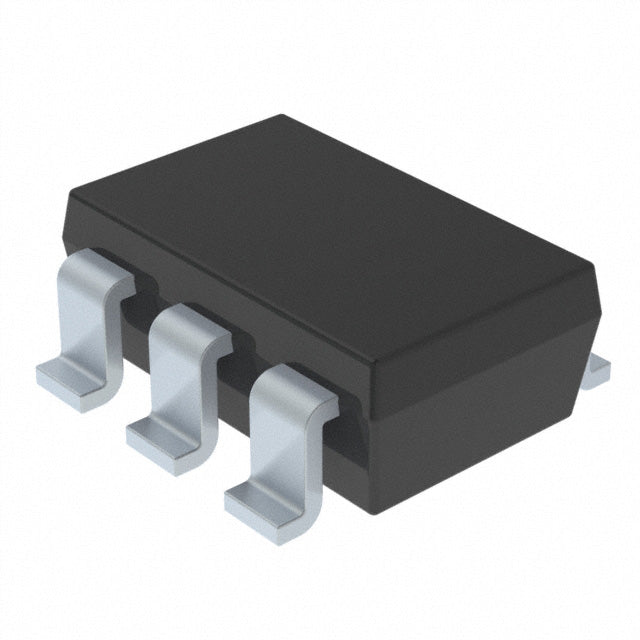

AP3125VKTR-G1 Flyback PWM Controller IC
The AP3125VKTR-G1 from Diodes Incorporated is a high-performance offline flyback PWM controller designed for isolated AC-DC power conversion applications. This controller features comprehensive protection mechanisms including current limiting, over-load, over-temperature, and over-voltage protection, ensuring reliable operation across demanding industrial, telecom, and consumer electronics applications.
Key Features:
- Flyback topology for isolated power conversion
- 65kHz switching frequency for compact transformer design
- Wide supply voltage range: 10V to 25V
- 15.8V start-up voltage
- 75% maximum duty cycle
- Comprehensive fault protection suite
- Extended operating temperature: -40°C to 150°C (TJ)
- Compact SOT-26 (SOT-23-6) surface mount package
- RoHS and REACH compliant
Applications: AC-DC adapters, auxiliary power supplies, battery chargers, industrial control systems, telecom power modules, and consumer electronics.
As an authorized distributor, we provide full traceability, original manufacturer documentation, and long lifecycle support for design-in confidence.
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | |
| Packaging | Cut Tape (CT) | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 15.8 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 25V |
| Duty Cycle | 75% |
| Frequency - Switching | 65kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-26 |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
