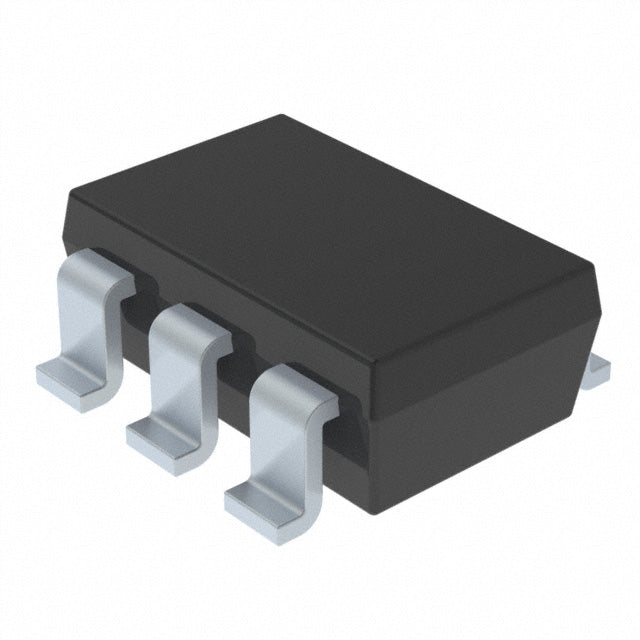

AP3302AEV1 Flyback PWM Controller IC
The AP3302AEV1 from Diodes Incorporated is a high-performance isolated flyback PWM controller designed for reliable offline power conversion applications. This compact SOT-26 packaged IC operates with a wide supply voltage range of 10V to 28V and features a 120kHz switching frequency for efficient power management.
Key Features
- Isolated flyback topology for safe power conversion
- Wide supply voltage range: 10V ~ 28V
- 120kHz switching frequency for compact design
- 15.8V start-up voltage
- Comprehensive protection: current limiting, overload, over-temperature, and over-voltage
- Surface mount SOT-26 package for space-efficient designs
- Operating temperature range: -40°C to 85°C
- RoHS compliant
Applications
Ideal for AC-DC power supplies, battery chargers, LED drivers, and industrial power conversion systems requiring reliable isolated power delivery.
