Diodes Incorporated AP3302AEV2
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 403.68 | Dhs. 403.68 |
| 15+ | Dhs. 390.94 | Dhs. 5,864.10 |
| 25+ | Dhs. 382.44 | Dhs. 9,561.00 |
| 50+ | Dhs. 361.19 | Dhs. 18,059.50 |
| 100+ | Dhs. 318.70 | Dhs. 31,870.00 |
| N+ | Dhs. 63.74 | Price Inquiry |
Request Quote / Inquiry

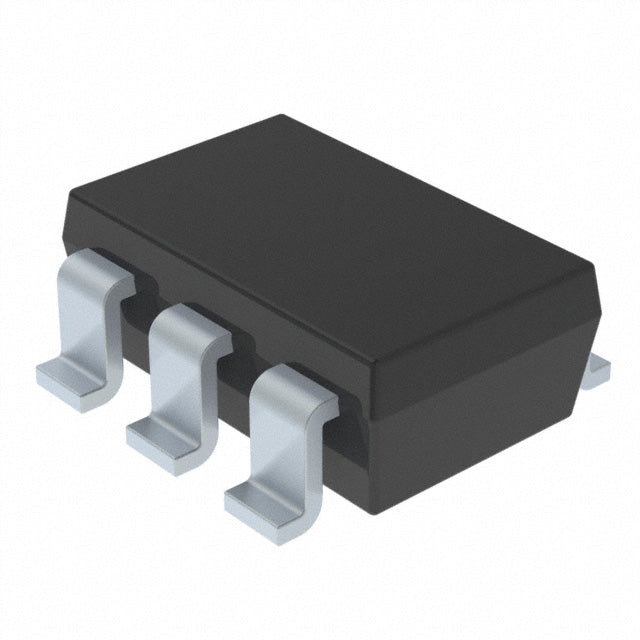

AP3302AEV2 Flyback PWM Controller IC
The AP3302AEV2 from Diodes Incorporated is a high-performance isolated flyback PWM controller designed for reliable offline power supply applications. This advanced controller IC features comprehensive fault protection including current limiting, overload, over-temperature, and over-voltage protection, ensuring robust and safe operation in demanding environments.
Key Features:
- Isolated Flyback Topology - Optimized for offline switching power supplies
- 120kHz Switching Frequency - Enables compact transformer design and reduced component size
- Wide Supply Voltage Range - Operates from 10V to 28V with 15.8V start-up voltage
- Comprehensive Protection - Current limiting, overload, over-temperature, and over-voltage safeguards
- Compact SOT-26 Package - Space-saving surface mount design for high-density PCB layouts
- Extended Temperature Range - Reliable operation from -40°C to 85°C (TA)
Applications:
Ideal for AC/DC power supplies, battery chargers, LED drivers, industrial control systems, and consumer electronics requiring efficient and reliable power conversion.
Technical Specifications:
Why Choose AP3302AEV2?
This controller IC delivers exceptional reliability and performance for your power supply designs. With its robust fault protection mechanisms and wide operating range, the AP3302AEV2 ensures consistent, safe operation across diverse applications. The compact SOT-26 package enables space-efficient designs while maintaining excellent thermal performance.
RoHS Compliant - Environmentally friendly and compliant with international standards for hazardous substance restrictions.
Related Products & Resources
Explore more power management solutions and technical resources:
- AC DC Converters, Offline Switchers - Browse our complete selection of AC/DC converter ICs and offline switching controllers for power supply applications
- HQICKEY - Your trusted source for premium semiconductor components, programmable logic, and power management solutions
- HQICKEY Technical Blog - Stay updated with the latest industry insights, application notes, and technical guides for power management design
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | |
| Packaging | Box | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 15.8 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 28V |
| Duty Cycle | - |
| Frequency - Switching | 120kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-26 |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
