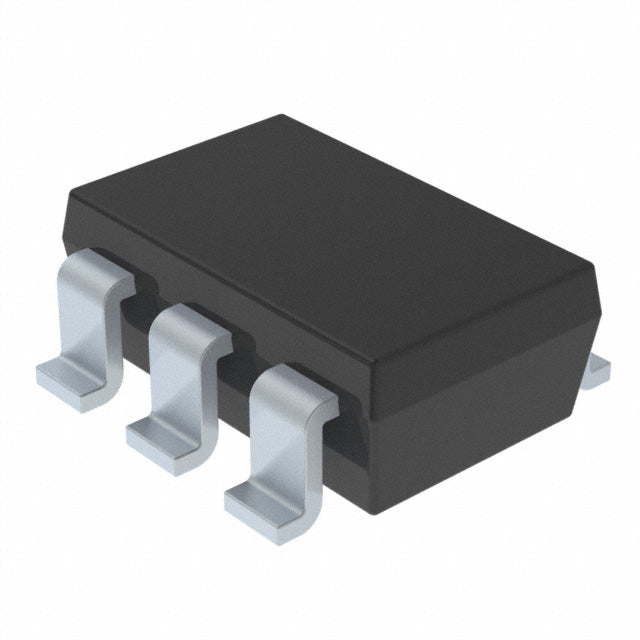

AP3302AW6-7 Flyback PWM Controller IC
The AP3302AW6-7 from Diodes Incorporated is a high-performance isolated flyback PWM controller designed for AC-DC offline switching applications. This precision controller operates at 120kHz switching frequency with a wide supply voltage range of 10V to 28V, making it ideal for aerospace, automotive, industrial, and telecommunications power supply designs.
Key Features
- Isolated Flyback Topology: Provides galvanic isolation for enhanced safety and noise immunity
- 120kHz Switching Frequency: Enables compact transformer design and reduced component size
- Wide Supply Range: 10V to 28V operating voltage with 15.8V start-up threshold
- Comprehensive Protection: Current limiting, overload, over-temperature, and over-voltage fault protection
- Compact SOT-26 Package: Space-efficient surface mount design for high-density applications
- Extended Temperature Range: -40°C to 85°C ambient operation for harsh environments
Applications
- AC-DC power supplies and adapters
- Industrial control systems
- Telecommunications equipment
- Automotive electronics
- Aerospace power management
Quality & Authenticity
All units are sourced from authorized distributors with full manufacturer documentation and traceability. RoHS compliant. Long lifecycle commitment ensures availability for critical designs.
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 15.8 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 28V |
| Duty Cycle | - |
| Frequency - Switching | 120kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-26 |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
×
