Diodes Incorporated AP3776MTR-G1
Regular price
Dhs. 355,904.94
Regular price
Dhs. 374,636.78
Sale price
Dhs. 355,904.94
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,904.94 | Dhs. 355,904.94 |
| 15+ | Dhs. 344,665.84 | Dhs. 5,169,987.60 |
| 25+ | Dhs. 337,173.10 | Dhs. 8,429,327.50 |
| 50+ | Dhs. 318,441.26 | Dhs. 15,922,063.00 |
| 100+ | Dhs. 280,977.59 | Dhs. 28,097,759.00 |
| N+ | Dhs. 56,195.52 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

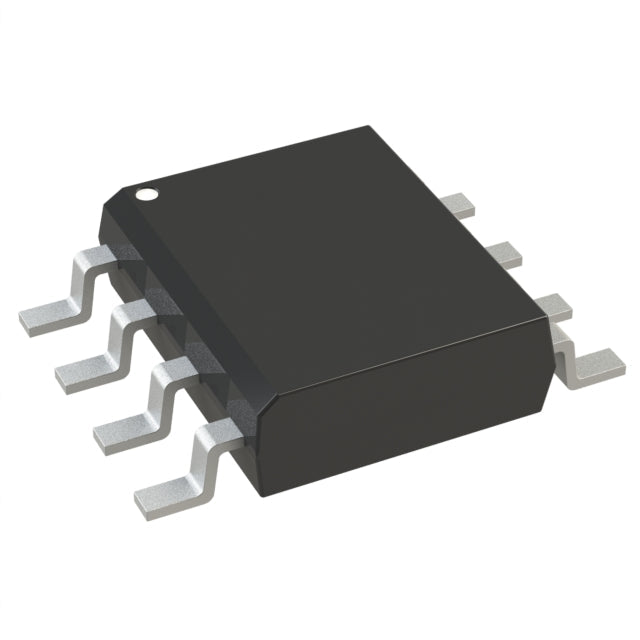

AP3776MTR-G1 Flyback PWM Controller IC
The AP3776MTR-G1 from Diodes Incorporated is a high-performance flyback PWM controller designed for isolated AC-DC and DC-DC power supply applications. This controller IC features comprehensive fault protection including over-temperature, over-voltage, and short-circuit safeguards, making it ideal for aerospace, automotive, industrial, and telecommunications power systems.
Key Features
- Isolated Flyback Topology – Optimized for offline switching applications
- Wide Supply Voltage Range – 6.1V to 28V operation with 13V start-up
- Comprehensive Protection – Over-temperature, over-voltage, and short-circuit fault protection
- Industrial Temperature Range – Rated for -40°C to 85°C ambient operation
- Compact 8-SOIC Package – Surface mount design for space-constrained applications
- RoHS Compliant – Meets environmental standards for global deployment
Applications
This PWM controller is well-suited for:
- Isolated AC-DC power supplies
- Flyback converter designs
- Industrial control systems
- Telecommunications equipment
- Automotive electronics
- Aerospace power management
Authorized Distributor Benefits
As an authorized distributor, we provide:
- ✓ 100% genuine Diodes Incorporated components
- ✓ Full manufacturer documentation and datasheets
- ✓ Complete traceability and authenticity guarantees
- ✓ Long lifecycle availability support
- ✓ Global shipping through authorized channels
- ✓ Design-in support and reference designs
All specifications subject to manufacturer's datasheet. Contact us for design-in support, reference designs, and technical documentation.
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 13 V |
| Voltage - Supply (Vcc/Vdd) | 6.1V ~ 28V |
| Duty Cycle | - |
| Frequency - Switching | - |
| Power (Watts) | - |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| ROHS |  |
AP3776MTR-G1.pdf
×
