Diodes Incorporated AP3783AK6TR-G1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.45 | Dhs. 3.45 |
| 15+ | Dhs. 3.34 | Dhs. 50.10 |
| 25+ | Dhs. 3.27 | Dhs. 81.75 |
| 50+ | Dhs. 3.09 | Dhs. 154.50 |
| 100+ | Dhs. 2.72 | Dhs. 272.00 |
| N+ | Dhs. 0.54 | Price Inquiry |
Request Quote / Inquiry

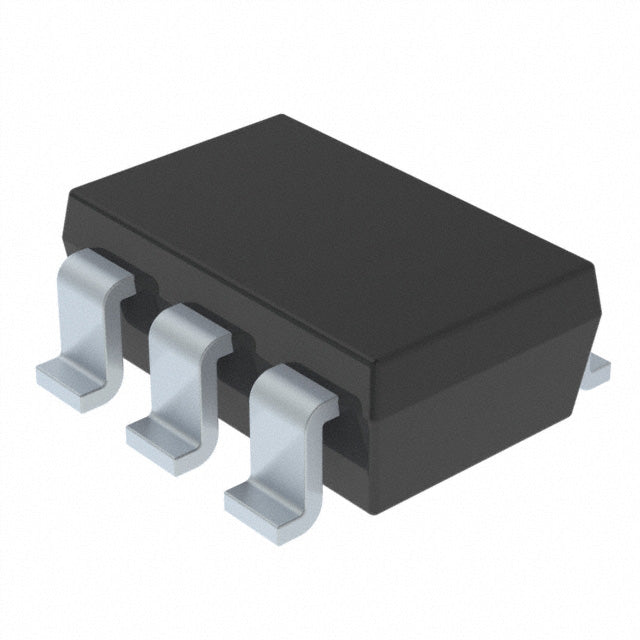

AP3783AK6TR-G1 Flyback PWM Controller IC
The AP3783AK6TR-G1 from Diodes Incorporated is a high-performance isolated flyback PWM controller designed for offline AC-DC power conversion applications. This compact SOT-26 surface mount device delivers reliable power management with comprehensive fault protection for industrial, automotive, medical, and telecom systems.
Key Features
- Isolated Flyback Topology - Optimized for offline switching power supplies
- Wide Supply Range - Operates from 6.8V to 35V with 15.5V startup voltage
- 60kHz Switching Frequency - Balanced efficiency and component size
- Comprehensive Protection - Over-temperature, over-voltage, and short-circuit safeguards
- Extended Temperature Range - Rated for -40°C to 150°C junction temperature
- Compact SOT-26 Package - Space-saving surface mount design
- RoHS Compliant - Meets environmental standards for global markets
Applications
Ideal for AC-DC adapters, auxiliary power supplies, battery chargers, LED drivers, and industrial control systems requiring reliable isolated power conversion with robust protection features.
Ordering Information
Part Number: AP3783AK6TR-G1
Package: SOT-26 (SOT-23-6)
Packaging Options: Cut Tape (CT) or Tape & Reel (TR)
RoHS Status: Compliant
For datasheets, reference designs, and technical support, contact our engineering team. We provide full traceability documentation and compliance certificates with every order.
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 15.5 V |
| Voltage - Supply (Vcc/Vdd) | 6.8V ~ 35V |
| Duty Cycle | - |
| Frequency - Switching | 60kHz |
| Power (Watts) | - |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-26 |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
