Diodes Incorporated AP3785TAMTR-G1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.24 | $0.24 |
| 15+ | $0.23 | $3.45 |
| 25+ | $0.23 | $5.75 |
| 50+ | $0.21 | $10.50 |
| 100+ | $0.19 | $19.00 |
| N+ | $0.04 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | |
| Packaging | Factory | Tape & Reel (TR) |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 13 V |
| Voltage - Supply (Vcc/Vdd) | 5.9V ~ 30V |
| Duty Cycle | - |
| Frequency - Switching | 80kHz |
| Power (Watts) | 15 W |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| ROHS |  |

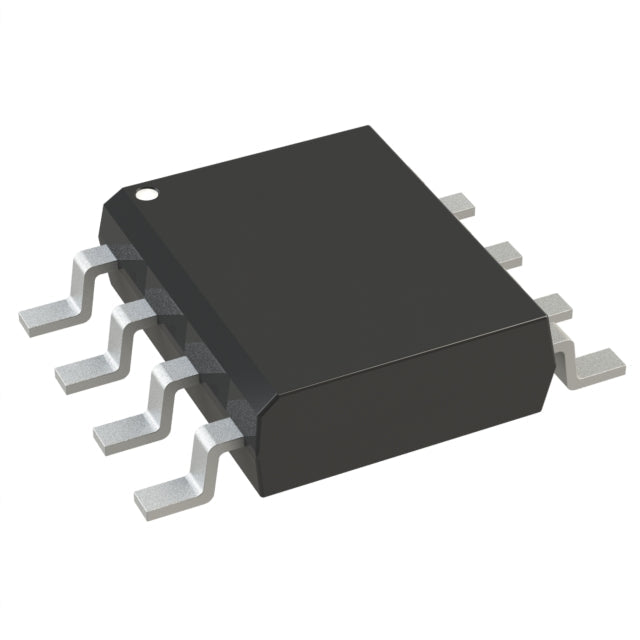

AP3785TAMTR-G1 - Flyback PWM Controller IC
The AP3785TAMTR-G1 from Diodes Incorporated is a high-performance isolated flyback PWM controller designed for offline AC-DC power conversion applications up to 15W. This controller IC features an 80kHz switching frequency, operates from a 5.9V to 30V supply voltage, and includes comprehensive fault protection including over-temperature, over-voltage, and short circuit protection.
Key Features:
- Isolated flyback topology for safe AC-DC conversion
- 15W power handling capability
- 80kHz switching frequency for compact transformer design
- Wide supply voltage range: 5.9V to 30V
- 13V start-up voltage
- Comprehensive protection: Over-temperature, over-voltage, short circuit
- Surface mount 8-SOIC package for automated assembly
- Operating temperature range: -40°C to 150°C (TJ)
- RoHS compliant for environmental compliance
Applications: Ideal for low-power AC-DC adapters, auxiliary power supplies, battery chargers, and industrial control systems requiring isolated power conversion with robust protection features.
Quality & Compliance: Factory-sealed tape and reel packaging ensures component integrity. Full traceability and RoHS/REACH compliance documentation available.
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
