Diodes Incorporated AP3970P-G1
Regular price
$94,999.99
Regular price
$99,999.99
Sale price
$94,999.99
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 15 V |
| Voltage - Supply (Vcc/Vdd) | 5.3V ~ 22V |
| Duty Cycle | - |
| Frequency - Switching | 60kHz |
| Power (Watts) | 12 W |
| Fault Protection | Over Temperature, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| ROHS |  |

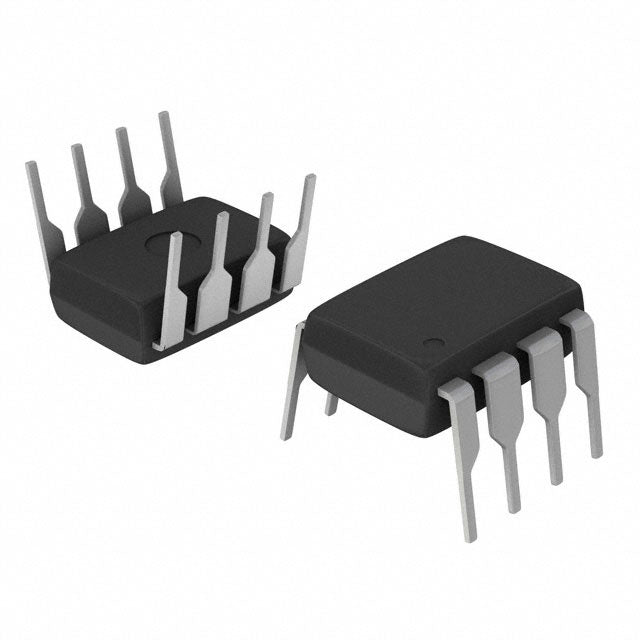

AP3970P-G1 - 12W Flyback Offline Switching IC
The AP3970P-G1 from Diodes Incorporated is a high-performance 12-watt isolated flyback AC/DC offline switching power supply controller designed for cost-effective, space-constrained applications. This integrated power management IC features internal switching elements and operates at 60kHz switching frequency, delivering reliable power conversion with comprehensive fault protection.
Key Features & Benefits
- 12W Power Output - Ideal for low-to-medium power applications including adapters, chargers, and auxiliary supplies
- Isolated Flyback Topology - Provides galvanic isolation between input and output for enhanced safety
- Internal Switch - Reduces external component count and simplifies design
- Wide Supply Voltage Range - Operates from 5.3V to 22V with 15V start-up voltage
- 60kHz Switching Frequency - Enables use of smaller magnetic components
- Comprehensive Protection - Over-temperature and short-circuit fault protection safeguards your system
- Industrial Temperature Range - Operates reliably from -40°C to +85°C (TA)
- Standard 8-DIP Package - Through-hole mounting for easy prototyping and manufacturing
Applications
- AC/DC power adapters and chargers
- Auxiliary power supplies for industrial equipment
- Home appliances and consumer electronics
- Telecommunications and networking equipment
- Smart home and IoT devices
Why Choose Authorized Distribution?
When you purchase the AP3970P-G1 from our authorized channel, you receive:
- ✓ 100% Genuine Components - Factory-sealed, authentic Diodes Incorporated products
- ✓ Full Manufacturer Traceability - Complete documentation and lot tracking
- ✓ Warranty Protection - Backed by manufacturer warranty
- ✓ Technical Support - Access to datasheets, reference designs, and application notes
- ✓ Long Lifecycle Availability - Reliable supply for production programs
All specifications subject to manufacturer documentation. Contact us for datasheets, reference designs, and technical support.
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
×
