Diodes Incorporated AP3983RTMTR-G1
Regular price
Dhs. 355,842.93
Regular price
Dhs. 374,571.50
Sale price
Dhs. 355,842.93
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,842.93 | Dhs. 355,842.93 |
| 15+ | Dhs. 344,605.78 | Dhs. 5,169,086.70 |
| 25+ | Dhs. 337,114.35 | Dhs. 8,427,858.75 |
| 50+ | Dhs. 318,385.78 | Dhs. 15,919,289.00 |
| 100+ | Dhs. 280,928.63 | Dhs. 28,092,863.00 |
| N+ | Dhs. 56,185.73 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

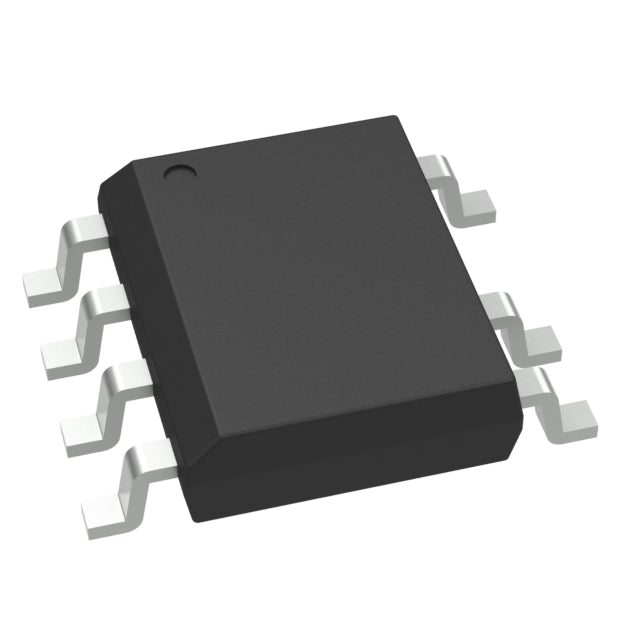

AP3983RTMTR-G1 - AC-DC Offline Switching IC
The AP3983RTMTR-G1 from Diodes Incorporated is a high-performance 10W isolated flyback offline switching IC designed for reliable AC-DC power conversion applications. This surface-mount IC features a 700V breakdown voltage, 80kHz switching frequency, and comprehensive fault protection including over-temperature, over-voltage, and short circuit safeguards.
Key Features:
- 10W power output with isolated flyback topology
- 700V breakdown voltage for robust performance
- 80kHz switching frequency for efficient operation
- Comprehensive protection: over-temperature, over-voltage, short circuit
- Wide operating temperature range: -40°C to 150°C (TJ)
- Compact 7-SO surface mount package
- Supply voltage range: 6V to 18V
Ideal for industrial, automotive, and telecommunications power supply applications requiring reliable, isolated AC-DC conversion with built-in protection features.
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | 15.5 V |
| Voltage - Supply (Vcc/Vdd) | 6V ~ 18V |
| Duty Cycle | - |
| Frequency - Switching | 80kHz |
| Power (Watts) | 10 W |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SO |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
×
