Diodes Incorporated AP3984MTR-G1
Regular price
Dhs. 4.23
Regular price
Dhs. 4.46
Sale price
Dhs. 4.23
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 4.23 | Dhs. 4.23 |
| 15+ | Dhs. 4.10 | Dhs. 61.50 |
| 25+ | Dhs. 4.01 | Dhs. 100.25 |
| 50+ | Dhs. 3.79 | Dhs. 189.50 |
| 100+ | Dhs. 3.35 | Dhs. 335.00 |
| N+ | Dhs. 0.67 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

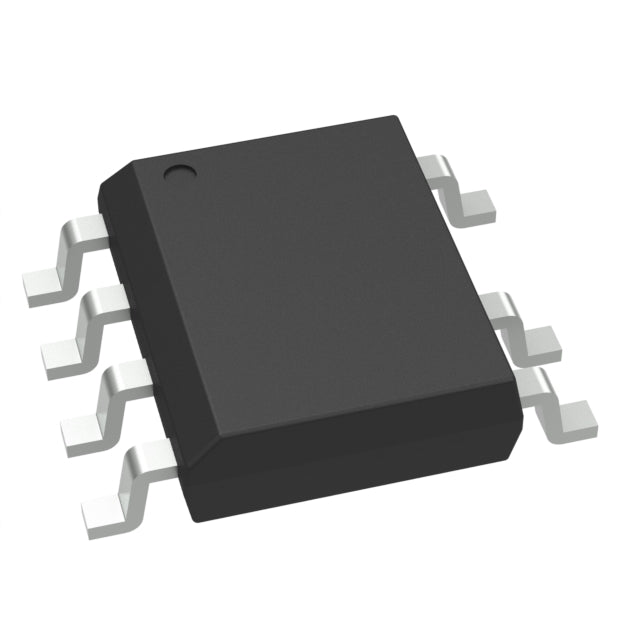

AP3984MTR-G1 Flyback Switching Regulator IC
The AP3984MTR-G1 from Diodes Incorporated is a high-performance isolated flyback switching regulator designed for reliable AC/DC and DC/DC power conversion applications. This offline switcher IC features a 700V breakdown voltage, integrated internal switches, and comprehensive fault protection including over-temperature, over-voltage, and short-circuit safeguards.
Key Features:
- 700V breakdown voltage for robust isolation
- 60kHz switching frequency for efficient operation
- Wide supply voltage range: 4.6V to 25V
- 13V start-up voltage
- Comprehensive protection: over-temperature, over-voltage, short circuit
- Surface mount 7-SO package for space-efficient designs
- Operating temperature range: -40°C to 105°C
Applications: Ideal for industrial power supplies, telecom equipment, medical devices, and automotive systems requiring long lifecycle components with full traceability and RoHS/REACH compliance.
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | |
| Packaging | Cut Tape (CT) | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | 13 V |
| Voltage - Supply (Vcc/Vdd) | 4.6V ~ 25V |
| Duty Cycle | - |
| Frequency - Switching | 60kHz |
| Power (Watts) | - |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SO |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
×
