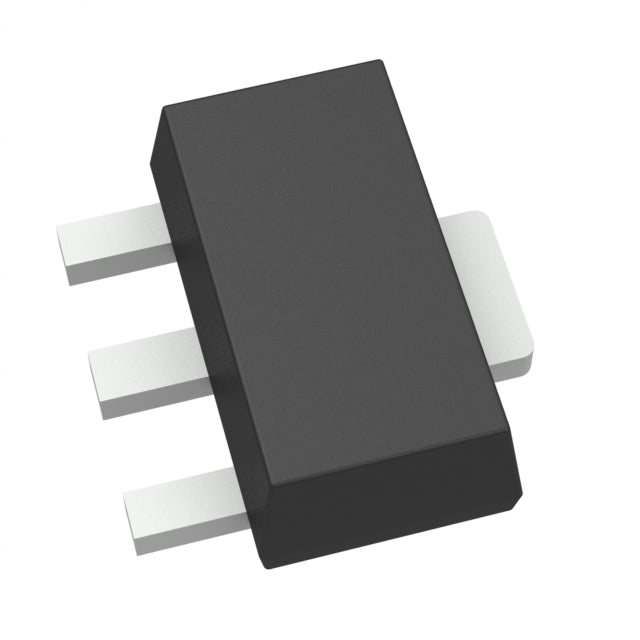

Diodes Incorporated AS78L05RTR-G1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.47 | $0.47 |
| 15+ | $0.45 | $6.75 |
| 25+ | $0.44 | $11.00 |
| 50+ | $0.42 | $21.00 |
| 100+ | $0.37 | $37.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.8V @ 100mA (Typ) |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 5.5 mA |
| Current - Supply (Max) | - |
| PSRR | 62dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89-3 |
| ROHS |  |
The AS78L05RTR-G1 from Diodes Incorporated is a fixed 5V LDO regulator capable of 100mA output. With a typical dropout of 1.8V and 62dB PSRR at 120Hz, it delivers stable power for consumer and industrial applications. The SOT-89-3 package offers good thermal performance.
- Proven Reliability: Standard 78L05 pinout and performance.
- Good Ripple Rejection: 62dB at 120Hz filters mains hum.
- Thermal Efficiency: SOT-89-3 package dissipates heat well.
- Cost-Effective: Ideal for high-volume consumer products.
Consumer Electronics Power Supplies
The 5V output and 100mA capability suit small appliances, remote controls, and toys requiring regulated power.
Home Automation Modules
Provides stable 5V rail for microcontrollers and sensors in smart home devices like thermostats and door locks.
LED Lighting Drivers
Can power control logic in LED drivers, ensuring consistent brightness control.
Telecom Interface Circuits
Stable 5V supply for line drivers and interface ICs in communication equipment.
Test and Measurement Equipment
Reliable 5V reference for analog circuits in multimeters and oscilloscopes.
Security Systems
Powers sensors and control panels in alarm systems with consistent performance.
- Q: What is the output voltage?
- A: Fixed 5V output.
- Q: What is the maximum output current?
- A: 100mA.
- Q: What is the input voltage?
- A: 5V (typical).
- Q: What is the dropout voltage?
- A: 1.8V typical at 100mA.
- Q: What is the quiescent current?
- A: 5.5 mA.
- Q: What package is available?
- A: SOT-89-3.
