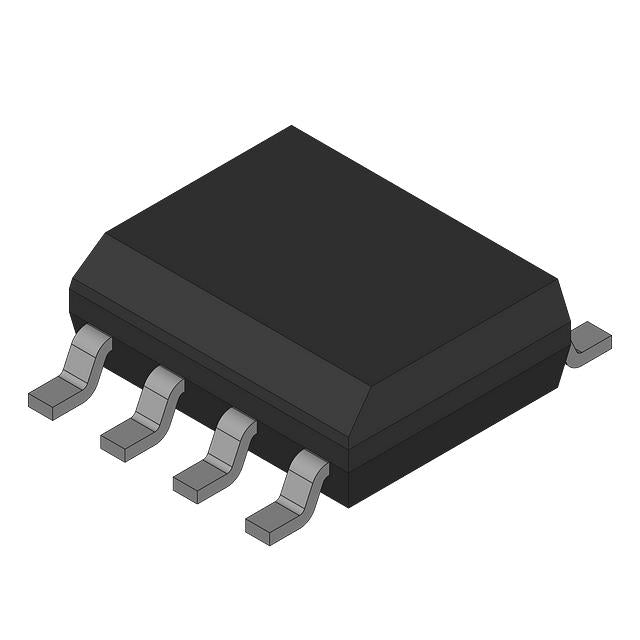

onsemi ASM3P2111BG-08SR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.52 | $7.52 |
| 15+ | $1.73 | $25.95 |
| 25+ | $1.69 | $42.25 |
| 50+ | $1.60 | $80.00 |
| 100+ | $1.41 | $141.00 |
| N+ | $0.28 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Bulk | |
| Type | Fanout Distribution, Frequency Modulator, Spread Spectrum Clock Generator |
| PLL | Yes |
| Input | Crystal |
| Output | Clock |
| Number of Circuits | 1 |
| Ratio - Input:Output | - |
| Differential - Input:Output | No/No |
| Frequency - Max | 25MHz |
| Divider/Multiplier | No/No |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | 0°C ~ 70°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
The onsemi ASM3P2111BG-08SR is a versatile clock generator that combines fanout distribution, frequency modulation, and spread spectrum capabilities. This single-circuit device accepts a crystal input and provides a clock output at frequencies up to 25 MHz. Packaged in an 8-SOIC, it operates from 0°C to 70°C. Its integrated PLL enables frequency modulation for EMI reduction, making it suitable for consumer electronics, automotive, and industrial applications.
- EMI Reduction: Spread spectrum modulation lowers electromagnetic interference, easing compliance with EMC standards.
- Multi-Functionality: Combines fanout distribution, frequency modulation, and spread spectrum in one device.
- Crystal Input: Provides a low-cost, high-accuracy frequency reference.
- Compact Design: The 8-SOIC package is ideal for space-constrained applications.
EMI Reduction in Automotive Infotainment
The ASM3P2111BG-08SR's spread spectrum modulation reduces EMI in automotive infotainment systems, helping to meet stringent EMC requirements for vehicle electronics.
Clock Generation for USB Peripherals
With its crystal input and 25 MHz output, this device can generate reference clocks for USB controllers in peripherals like keyboards and mice, ensuring reliable data transfer.
Fanout Distribution for MCU Systems
In microcontroller-based systems, this device distributes a clean clock to multiple peripherals, reducing signal integrity issues and simplifying PCB layout.
Frequency Modulation for Wireless Modules
The frequency modulator function can be used to spread the spectrum of wireless module clocks, reducing interference with other RF circuits.
Consumer Electronics Timing
For TVs and audio equipment, the ASM3P2111BG-08SR provides a stable clock source, reducing electromagnetic interference and improving audio/video quality.
Industrial Sensor Timing
In industrial sensors, this clock generator provides a reliable timing reference, operating within the 0°C to 70°C temperature range.
