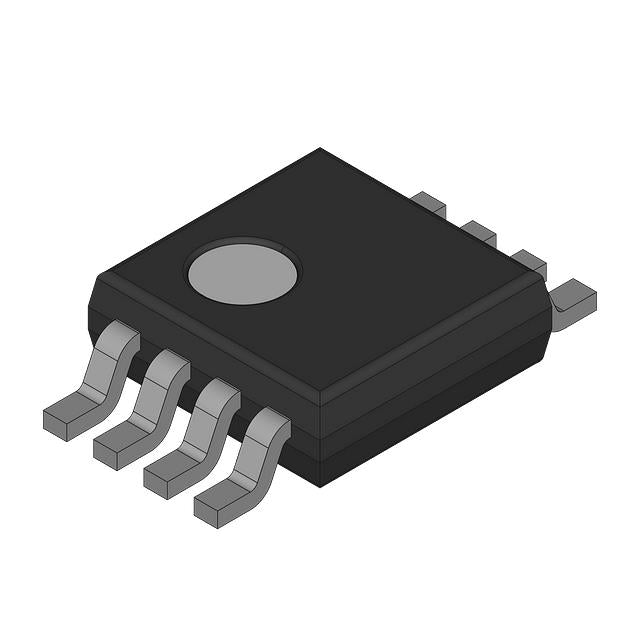

onsemi ASM3P2180AF-08ST
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.52 | $7.52 |
| 15+ | $1.73 | $25.95 |
| 25+ | $1.69 | $42.25 |
| 50+ | $1.60 | $80.00 |
| 100+ | $1.41 | $141.00 |
| N+ | $0.28 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Bulk | |
| Type | Frequency Modulator, Spread Spectrum Clock Generator |
| PLL | Yes |
| Input | Crystal |
| Output | CMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | - |
| Differential - Input:Output | No/No |
| Frequency - Max | 30MHz |
| Divider/Multiplier | No/No |
| Voltage - Supply | 2.8V ~ 3.7V |
| Operating Temperature | 0°C ~ 70°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
The onsemi ASM3P2180AF-08ST is a spread spectrum clock generator with frequency modulation capabilities, designed to reduce electromagnetic interference (EMI) in electronic systems. This single-circuit device accepts a crystal input and provides a CMOS output at frequencies up to 30 MHz. Housed in an 8-SOIC package, it operates over a temperature range of 0°C to 70°C. Its integrated PLL enables precise frequency modulation, making it ideal for consumer electronics, industrial, and networking applications.
- EMI Reduction: Spread spectrum modulation lowers peak emissions, simplifying EMC compliance.
- CMOS Output: Provides a clean, low-noise clock signal for digital circuits.
- Crystal Input: Offers a cost-effective, accurate frequency reference.
- Compact Package: The 8-SOIC form factor is suitable for space-limited designs.
EMI Reduction in LCD Displays
The ASM3P2180AF-08ST's spread spectrum modulation reduces EMI from LCD panel clock signals, improving display performance and meeting regulatory standards.
Clock Generation for Microcontrollers
With its crystal input and CMOS output, this device provides a clean, stable clock for microcontrollers in embedded systems, reducing noise and improving reliability.
Frequency Modulation for Audio Codecs
In audio equipment, this clock generator can modulate the clock frequency to reduce interference with audio signals, enhancing sound quality.
Consumer Electronics Timing
For set-top boxes and gaming consoles, the ASM3P2180AF-08ST provides a reliable clock source, reducing EMI and improving system stability.
Industrial Control Systems
In industrial controllers, this device generates a stable clock for logic circuits, operating within the 0°C to 70°C temperature range.
Networking Equipment Clocking
For low-speed networking devices, this spread spectrum clock generator provides a clean reference clock, reducing interference with other system components.
- Q: What type of device is the ASM3P2180AF-08ST?
- A: The ASM3P2180AF-08ST is a Frequency Modulator and Spread Spectrum Clock Generator from onsemi.
- Q: Does it include a PLL?
- A: Yes, it includes a PLL.
- Q: What are the input and output types?
- A: The input type is Crystal, and the output type is CMOS.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum frequency?
- A: The maximum frequency is 30 MHz.
- Q: What is the operating temperature range and package?
- A: It operates from 0°C to 70°C and comes in an 8-SOIC package.
