AT40K05AL-1BQC

Microchip AT40K05AL-1BQC FPGA - High-Performance Programmable Logic Solution

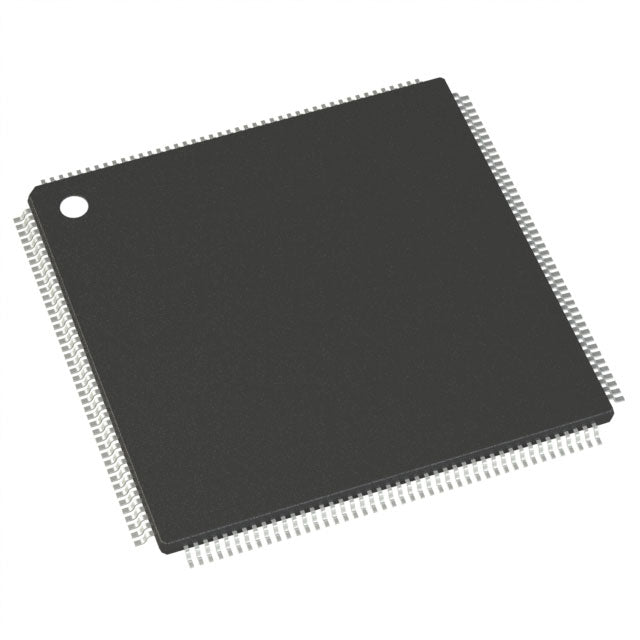

The AT40K05AL-1BQC from Microchip Technology is a versatile FPGA (Field-Programmable Gate Array) from the AT40KAL series, engineered for demanding industrial, automotive, aerospace, and embedded computing applications. With 10,000 gates and 256 logic elements, this device delivers reliable programmable logic performance in a compact 144-LQFP surface mount package.

Key Features & Benefits

• 10,000 Gates & 256 Logic Elements: Provides flexible logic capacity for complex digital designs and custom hardware acceleration
• 114 I/O Pins: Extensive connectivity options for interfacing with sensors, controllers, and communication peripherals
• 2048 RAM Bits: Integrated memory for buffering, state machines, and data processing
• 3V to 3.6V Supply Voltage: Compatible with standard 3.3V logic systems, reducing power consumption
• Surface Mount 144-LQFP Package: Space-efficient 20x20mm footprint ideal for high-density PCB layouts
• 0°C to 70°C Operating Range: Reliable performance across commercial temperature environments

Applications

This FPGA is well-suited for industrial control systems, automotive electronics, communications infrastructure, edge computing devices, and custom embedded solutions requiring reconfigurable logic and real-time processing.

• AT40K05AL-1BQC.pdf
