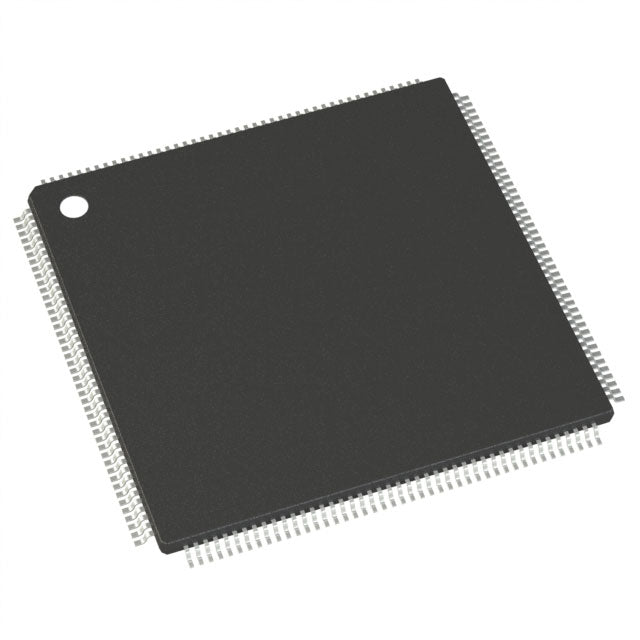

Microchip Technology AT40K05AL-1BQU

AT40K05AL-1BQU FPGA System-on-Chip Overview

The AT40K05AL-1BQU from Microchip Technology is a high-performance FPGA (Field-Programmable Gate Array) designed for demanding industrial, automotive, and aerospace applications. Part of the AT40KAL series, this device delivers 10,000 gates with 256 logic elements and 114 I/O pins in a compact 144-LQFP surface mount package.

Key Features & Benefits

• 10,000 Gates - Ample logic capacity for complex digital designs and embedded systems
• 256 Logic Elements - Flexible architecture for custom logic implementation
• 114 I/O Pins - Extensive connectivity for interfacing with peripherals and sensors
• 2048 RAM Bits - Integrated memory for data buffering and state machines
• 3V to 3.6V Supply - Low-voltage operation for power-efficient designs
• 0°C to 70°C Operating Range - Reliable performance across commercial temperature specifications
• 144-LQFP Package (20x20mm) - Space-saving surface mount footprint for high-density PCB layouts
• RoHS Compliant - Environmentally friendly, lead-free construction

Ideal Applications

This FPGA is perfectly suited for industrial control systems, automotive electronics, communications infrastructure, edge computing devices, and aerospace instrumentation where reconfigurable logic, reliability, and compact form factor are critical.

• AT40K05AL-1BQU.pdf
