Renesas Electronics Corporation AT45DQ321-SHD-B

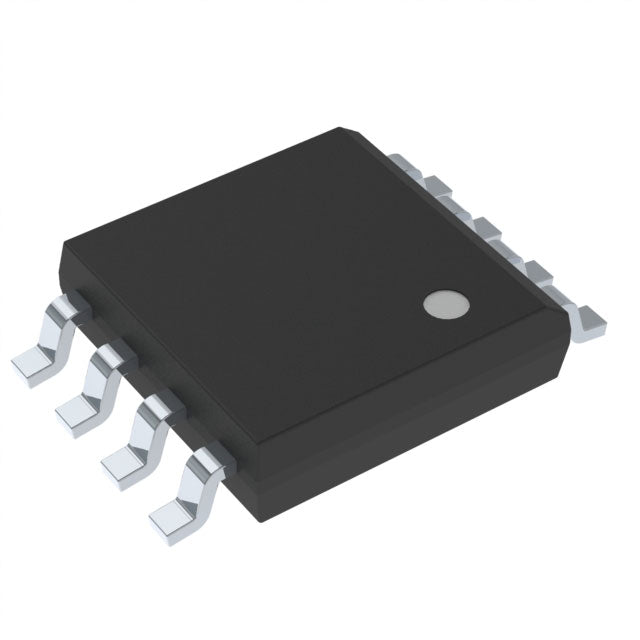

AT45DQ321-SHD-B - 32Mbit SPI Serial Flash Memory IC

The AT45DQ321-SHD-B from Renesas Electronics is a high-performance 32Mbit serial flash memory device designed for embedded systems requiring reliable, non-volatile data storage. With its industry-standard SPI interface and 104MHz clock frequency, this flash memory IC delivers fast read/write operations while maintaining low power consumption across a wide voltage range of 2.5V to 3.6V.

This industrial-grade flash memory component is engineered for mission-critical applications where data integrity, long-term availability, and consistent performance are essential. The AT45DQ321-SHD-B combines proven flash technology with modern interface standards, making it an ideal choice for OEMs and system integrators building next-generation embedded solutions.

Key Features & Benefits

• High-Speed Performance: 104MHz SPI interface enables rapid data access for time-critical applications, reducing system latency and improving overall throughput
• Flexible Memory Organization: 528 bytes × 8192 pages architecture optimizes data management and allows efficient sector-based operations
• Industrial Temperature Range: Operates reliably from -40°C to 85°C for harsh environments including automotive, industrial control, and outdoor installations
• Low Power Operation: Wide voltage supply range (2.5V ~ 3.6V) supports battery-powered designs and energy-efficient systems
• Compact Surface Mount Package: 8-SOIC footprint saves valuable PCB space while maintaining excellent thermal characteristics
• Fast Write Cycles: 8µs word write, 4ms page write for efficient data updates and reduced programming time
• Non-Volatile Storage: Retains data without power, perfect for configuration storage, firmware updates, and data logging
• Industry-Standard SPI Interface: Easy integration with microcontrollers, FPGAs, and other embedded processors

Technical Advantages for Embedded Design

The AT45DQ321-SHD-B offers several technical advantages that make it stand out in the serial flash memory market. Its 32Mbit (4MB) capacity provides ample storage for firmware, boot code, configuration parameters, and data logging applications. The SPI serial interface minimizes pin count requirements, freeing up valuable I/O resources for other system functions.

With a maximum clock frequency of 104MHz, this flash memory delivers read throughput suitable for code execution and rapid data retrieval. The page-based architecture (528 bytes per page) aligns well with common data structures and enables efficient wear-leveling algorithms when implemented in firmware.

Ideal Applications

This serial flash memory is perfectly suited for:

• Industrial Controllers: PLC systems, process control, factory automation
• Automotive Electronics: ECU firmware storage, infotainment systems, ADAS modules
• IoT Devices: Smart sensors, edge computing nodes, connected appliances
• Data Logging Systems: Environmental monitoring, instrumentation, black box recorders
• Firmware Storage: Bootloaders, application code, over-the-air update staging
• Configuration Management: System parameters, calibration data, user settings
• Embedded System Boot Code: Primary or backup boot storage for reliable system startup
• Medical Devices: Patient monitoring equipment, diagnostic instruments
• Telecommunications: Network equipment, base stations, routers

The AT45DQ321-SHD-B provides the reliability and performance required for mission-critical applications where data loss is not an option.

Why Choose HQICKEY?

When you source the AT45DQ321-SHD-B from HQICKEY, you receive more than just a component:

• 100% Authentic Renesas Components: Every IC is sourced directly from authorized channels with full traceability and authenticity verification
• Long Lifecycle Availability: We maintain strategic inventory for production continuity, protecting you from obsolescence and supply chain disruptions
• Dedicated Technical Support: Our engineering team provides pre-sales consultation, integration guidance, and post-sales technical assistance
• Worldwide Shipping: Reliable fulfillment with tracking to ensure your components arrive safely and on schedule
• Quality Assurance: Every component undergoes rigorous quality control to ensure it meets original manufacturer specifications
• Competitive Pricing: Volume pricing available for production quantities with transparent quotations
• Documentation Support: Access to datasheets, application notes, and reference designs

Design Considerations & Integration Tips

When integrating the AT45DQ321-SHD-B into your design, consider the following best practices:

• Ensure proper decoupling capacitors (0.1µF ceramic) are placed close to the VCC pin
• Use appropriate pull-up resistors on the SPI bus if multiple devices share the interface
• Implement proper chip select timing to avoid bus contention
• Consider write endurance and implement wear-leveling for frequently updated data
• Review the datasheet for specific timing requirements and AC characteristics
• Plan for firmware update mechanisms that leverage the page-based architecture

Quality & Compliance

The AT45DQ321-SHD-B meets stringent quality and environmental standards including RoHS compliance for lead-free manufacturing. Renesas Electronics maintains ISO 9001 certified manufacturing facilities and implements comprehensive quality management systems throughout the production lifecycle.

Ordering Information & Lead Times

The AT45DQ321-SHD-B is available for immediate shipment in production quantities. Contact our sales team for volume pricing, custom packaging options, and lead time information for larger orders. We maintain strategic inventory levels to support both prototype development and full-scale production requirements.
